点击放大查看

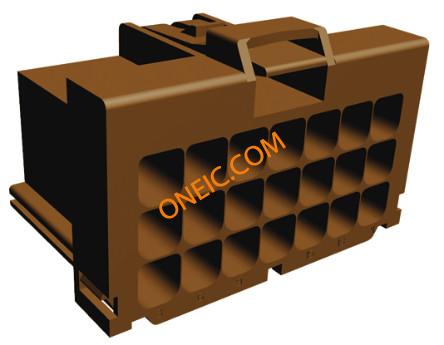

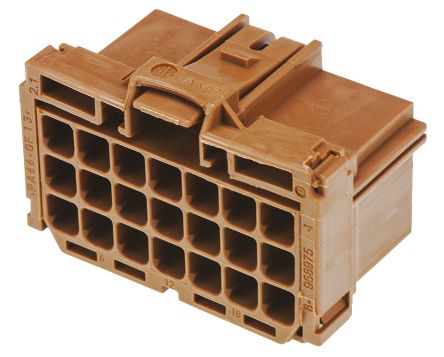

8-968975-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 21 POS 5mm Crimp ST Cable Mount Multiple Contact Point (MCP) Interconnection System MCP2.8 GEH 21P MCP 2.8 21 way receptacle housing, Key A Power to the Board MCP2 8 GEH 21P Conn Housing RCP 21 POS 5mm Crimp ST Cable Mount Product Highlights:HousingReceptacleStandardNumber of Positions = 21Tab Fit = 2.79 mmSearch Keywords:MCON, MCON1.2, Multiple Contact Point (MCP), MCP. LeavySeal, LevySeal, HDSCS HOUSING, 21 WAY MCP2.821wayreceptaclehousing,KeyA TE Connectivity AMP MCP 2.8 系列 3 行 5.5mm 节距 21 路 直 母 PCB 壳体 |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 900 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 次级绕组 | With | ||
机械参数
| 颜色 | Brown | 深度 | 23.5mm |
| 间距 | 5 mm | 宽度 | 28mm |
| 长度 | 41mm | 密封型 | No |
| 重量 | 0.06 | 包装方式 | Bulk |
| 插片宽度 | 2.79 [.110] | 导线线规 | 13 AWG |
| 排间距 | 0.217" (5.51mm) | 触头类型 | Female Socket |
| 外壳颜色 | Brown | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Tin |
| 紧固类型 | Latch Lock | 安装样式 | Panel |
| 排数 | 3 | 触头材料 | Copper Alloy |
| 壳体材料 | PA 66 GF | 主要材料 | Receptacle |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 21 | 接触件端接 | Crimp |
| 位数 | 21 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMP MCP |
| 钥匙类型 | A | 制造商全称 | AMPMCP2.8 |
| 产品子类型 | Housing | 其他规格 | No |
| 适用产品/相关产品 | Receptacle | ||
