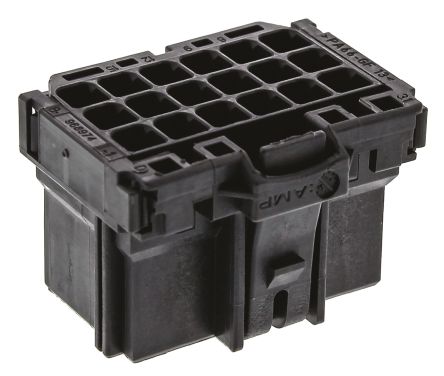

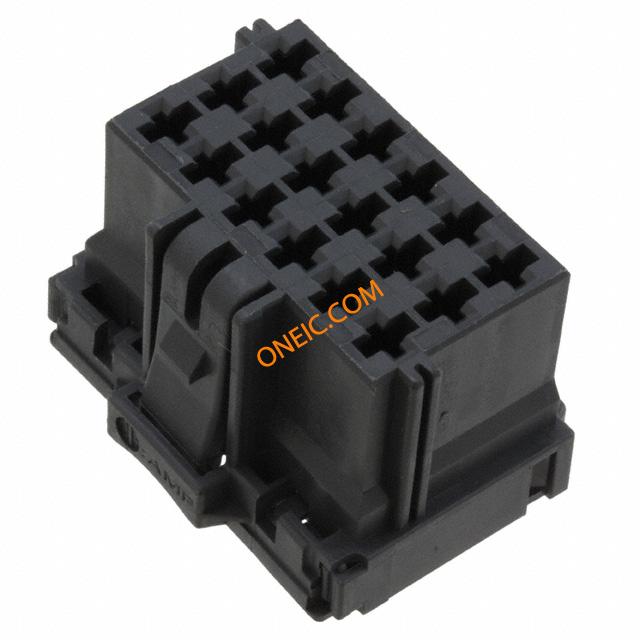

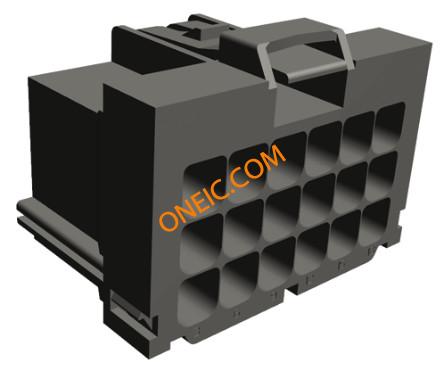

8-968974-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 18 POS 5mm Crimp ST Cable Mount Multiple Contact Point (MCP) Interconnection System CONN RCPT 18POS FREE HANG GRAY MCP 2.8 18 way receptacle housing, Key A Automotive Connectors MCP2 8 GEH 18P Conn Housing RCP 18 POS 5mm Crimp ST Cable Mount Product Highlights:HousingReceptacleStandardNumber of Positions = 18Tab Fit = 2.79 mmSearch Keywords:MCON, MCON1.2, Multiple Contact Point (MCP), MCP. LeavySeal, LevySeal, HDSCS HOUSING, 18 WAY MCP2.818wayreceptaclehousing,KeyA TE Connectivity AMP MCP 2.8 系列 3 行 5.5mm 节距 18 路 直 母 PCB 壳体 MCP2.8 GEH 18P |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 量程（°/s） | :- | 次级绕组 | With |
机械参数
| 颜色 | Gray | 深度 | 23.5mm |
| 间距 | 5 mm | 宽度 | 28mm |
| 高度 | 28 mm | 长度 | 36mm |
| 密封型 | No | 重量 | 0.06 |
| 包装方式 | Bulk | 插片宽度 | 2.79 [.110] |
| 导线线规 | 13 AWG | 排间距 | 0.217" (5.51mm) |
| 触头类型 | Female Socket | 外壳颜色 | Gray |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | :- | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 3 |
| 触头材料 | :- | 壳体材料 | PA 66 GF |
| 总长度 | 36 mm | 主要材料 | Receptacle |
| 触点数 | 18 | 接触件端接 | Crimp |
| 位数 | 18 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMP MCP |
| 钥匙类型 | A | 制造商全称 | AMPMCP2.8 |
| 产品子类型 | Housing | 其他规格 | No |
| 适用产品/相关产品 | Receptacle | ||
