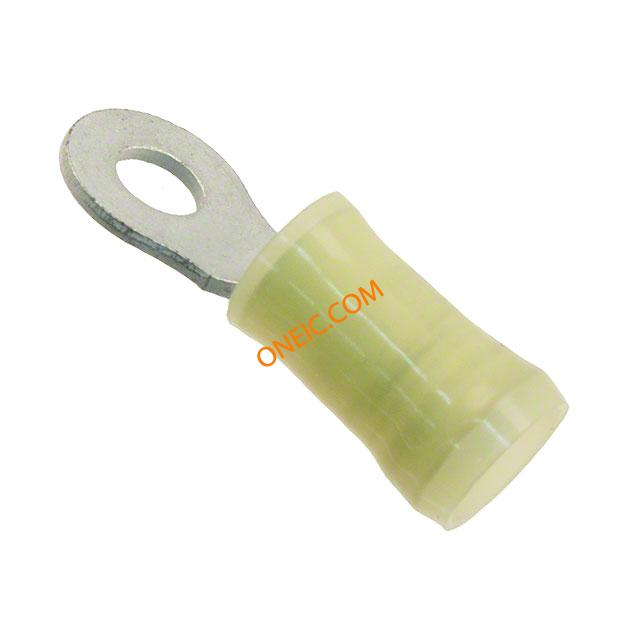

8-35108-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 10-12AWG 27.5mm 9.52mm Tin Loose Piece Terminals NYL-RING 12-10 YEL #8 Ring and Spade Tongue Terminals CONN RING 12-10AWG #8 PIDG Ring Tongue Terminal 10-12AWG 27.5mm 9.52mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #8, CRIMP, YELLOW SEE512-448035108 TERMINAL,PIDG R 12-10 8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | 8351081 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 量程（°/s） | :TE - PIDG Series | 电压范围 | 300VAC |
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Yellow | 形状 | RING-041 |
| 表面处理 | Tin | 重量 | 0.227 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.040" (1.02mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 8 | 导线线规 | 10-12 AWG |
| 本体表面处理 | PIDG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 4 mm | 端子类型 | Circular |
| 行程角度 | Straight | 接触镀层 | Tin |
| 连接器样式 | Straight | 总宽度 | 0.375" |
| 触头材料 | Copper | 柄部直径 | 0.171in. |
| 总长度 | 1.083" (27.51mm) | 刀片材料 | Copper |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Insulation Support | 材料厚度 | 0.04in. |
| 接触件尾部长度 | 1.02 [0.040] | 绝缘直径 | 3.81-6.35 [.150-.250] |
| 绝缘材料 - 类型 | Nylon | 外缘宽度 | 0.375" (9.53mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 法兰上方插针尺寸 | :0.164" |
| 法兰下方引脚尺寸 | :4.17mm | 供应商器件封装 | PIDG |
| 线规或范围 - AWG | 5,180 â 13,100 | 线规或范围 - mm² | 3.00-6.00² [12-10] |
产品信息
| 备注 | This is not a military qualified part. | 类型 | Ring Tongue Terminal |
| 连接器性别 | Female | 系列 | 351 |
| 产品特性 | Serrated Termination | 制造商全称 | AMP |
