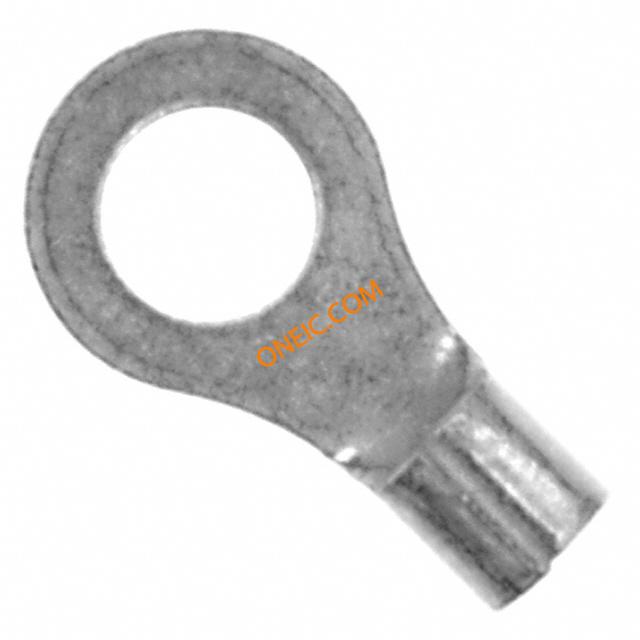

8-34123-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 14-16AWG 16.15mm 8.71mm Tin Loose Piece Terminals N/I-RING 16-14 #10 C/B Ring and Spade Tongue Terminals CONN RING 14-16 AWG #10 SOLIS 8-34123-1 Ring Tongue Terminal 14-16AWG 16.15mm 8.71mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B SEE512-426234123 Solistrand 16-14 AWG Straight Closed Barrel Ring Tongue Terminal TERM,SOLIS R 16-14 10 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | 8341231 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 形状 | RING-048 | 表面处理 | Tin |
| 重量 | .686 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.79 [0.031] |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 螺钉尺寸 | 10 |
| 导线线规 | 14-16 AWG | 本体表面处理 | SOLISTRAND |
| 端接方式 | Crimp | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.82 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 电缆材料 | Solid or Stranded | 连接器类型 | Circular |
| 接触镀层 | Tin | 线束直径 | 2.16 mm |
| 连接器样式 | Straight | 总宽度 | 0.343" |
| 触头材料 | Copper | 柄部直径 | 0.197in. |
| 总长度 | 0.636" (16.15mm) | 刀片材料 | Copper |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Non-Insulation Support | 端接样式 | 环形端子 |
| 材料厚度 | 0.031in. | 绝缘材料 - 类型 | No |
| 位数 | 1 | 外缘宽度 | 0.343" (8.71mm) |
| 筒体内径 | 2.16 mm [ .085 in ] | 螺纹/螺钉/孔尺寸 | 5 mm [ .197 in ] |
| 供应商器件封装 | SOLISTRAND | 接触镀层厚度 | 100 |
| 线规或范围 - AWG | 2,050 â 5,180 | 线规或范围 - mm² | 1.25-2.00² [16-14] |
| 非扩张内径 | 2.16 mm [ .085 in ] | ||
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 341 | 产品特性 | Brazed Seam, Serrated Termination |
| 可密封 | 否 | 检查插槽 | 否 |
| 主要用途 | Brazed Seam, Serrated Termination | 制造商全称 | AMP |
| 输出配置 | Free Hanging (In-Line) | ||
环境参数
| 工作温度 | 170 | ||
