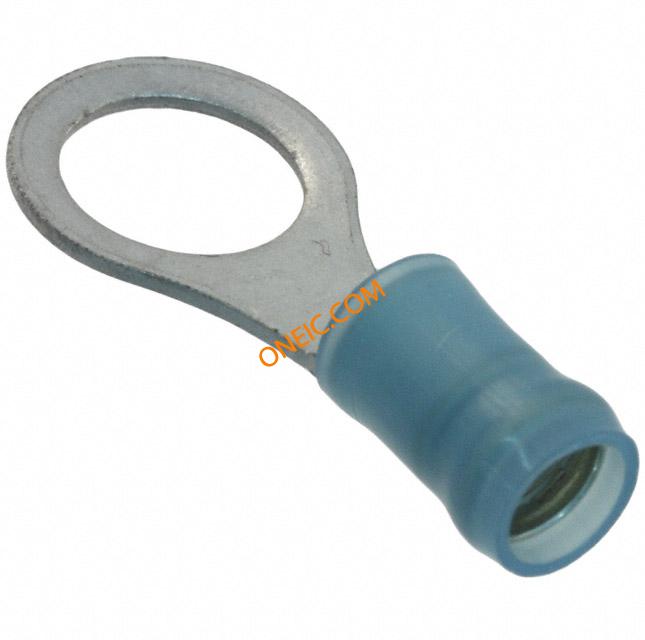

点击放大查看
8-328998-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 14-16AWG 27.38mm 11.91mm Tin Box Terminals NYL-RING 16-14 BLU 5/16 Ring and Spade Tongue Terminals CONN RING TONGUE 16-14AWG #5/16 Ring Tongue Terminal 14-16AWG 27.38mm 11.91mm Tin Box Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE 5/16IN, CRIMP BLUE SEE512-4478328998 TERMINAL,PIDG R 16-14 5/16 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Blue | 形状 | RING-041 |
| 表面处理 | Tin | 重量 | 0.132 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.031" (0.79mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 导线线规 | 14-16 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 7.93 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 连接器样式 | Straight | 触头材料 | Copper |
| 绝缘颜色 | :Blue | 总长度 | 1.078" (27.38mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Insulation Support |
| 接触件尾部长度 | 0.79 [0.031] | 绝缘直径 | 4.32 [.170] Max. |
| 绝缘材料 - 类型 | Nylon | 外缘宽度 | 0.469" (11.91mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 供应商器件封装 | PIDG |
| 线规或范围 - AWG | 2,050 â 5,180 | 线规或范围 - mm² | 1.25-2.00² [16-14] |
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 328 | 产品特性 | Serrated Termination |
| 制造商全称 | AMP | ||
