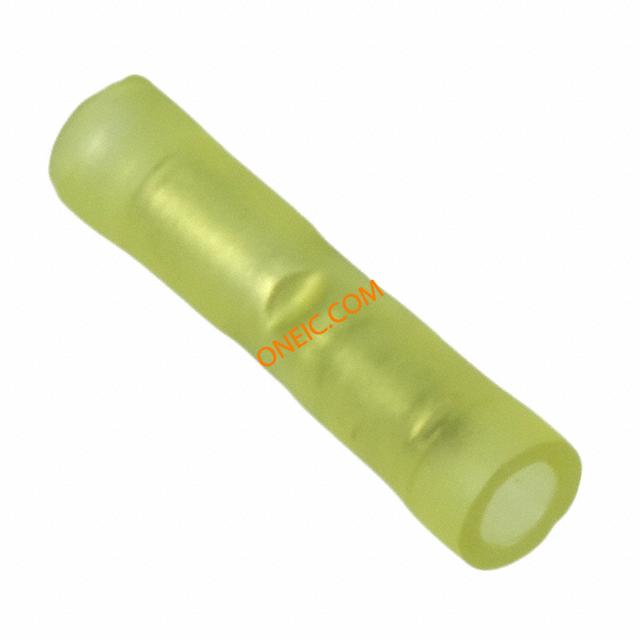

点击放大查看
8-321026-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Splice Terminal 22-26AWG 15.75mm Tin Loose Piece Terminals SPLICE PG BUTT 26-22 SPLICE PG BUTT 26-22 Splices - Closed Barrel SPLICE PG BUTT 26-22 Splice Terminal 22-26AWG 15.75mm Tin Loose Piece Product Highlights:SpliceNot SealedSplice Type = ButtButt Splice Type = StandardBody Style = PLASTI-GRIPSearch Keywords:Wire Termination and Splices, terminals and splices, W crimp, C crimp, TERMINAL, BUTT SPLICE, YELLOW SPLICE,PG BUTT 26-22 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Splices | 其他名称 | 83210261 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
机械参数
| 颜色 | Yellow | 表面处理 | Tin |
| 长度 | 0.62 in | 密封型 | No |
| 重量 | 0.032 | 材料（通用） | Polyvinyl Chloride (PVC) |
| 底座类型 | Standard | 包装方式 | Bulk |
| 绝缘类型 | Insulated | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 安装类型 | Wire |
| 螺柱/焊片尺寸 | :- | 端子类型 | Butt Splice, Inline, Individual Openings |
| 连接器类型 | :Butt Splice | 接触镀层 | Tin |
| 线束直径 | 0.4 mm | 触头材料 | Copper |
| 绝缘颜色 | :Yellow | 包装数量 | Loose Piece |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 绝缘直径 | 2.03 [.080] Max. | 绝缘材料 - 类型 | Polyvinyl Chloride (PVC) |
| 进线口数 | 2 | 线规或范围 - AWG | 202 â 810 |
| 线规或范围 - mm² | 0.12-0.40² [26-22] | ||
产品信息
| 备注 | 26-22 splices are 26-24 range in accordance with MIL-T-7928. | 类型 | Splice Terminal |
| 连接器性别 | Female | 系列 | :Plasti-Grip |
| 产品特性 | Serrated Mating Area | 制造商全称 | AMP |
| 产品子类型 | Splice | ||
