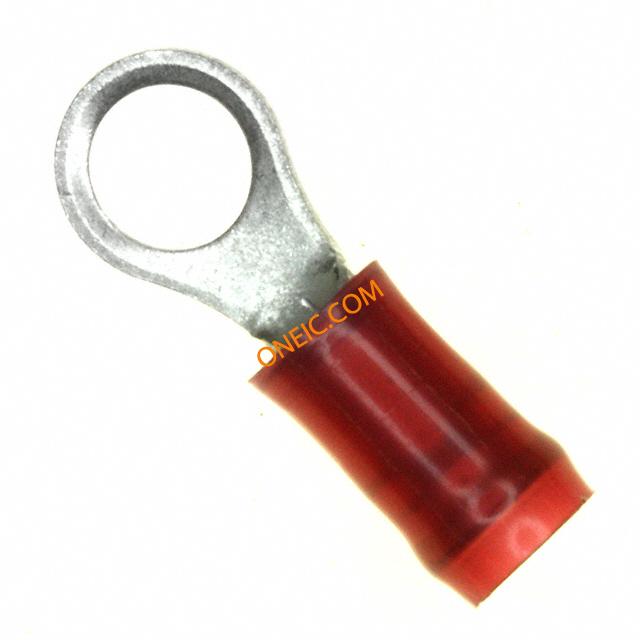

8-31887-1
| 制造商 | |
| 描述 | Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Loose Piece Terminals RING 22-16 #10 Ring and Spade Tongue Terminals CONN RING TONGUE 22-16 AWG #10 Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B PIDG R 22-16 COMM 22-18 MIL 10 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | 8318871 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 最大电压 | 300 | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Red | 深度 | 7.14 mm |
| 形状 | RING-042 | 表面处理 | Tin |
| 长度 | 20.24 mm | 重量 | .658 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.031" (0.79mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 10 | 导线线规 | 16-22 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 触点形状 | Ring Tongue | 安装类型 | Wire |
| 螺柱/焊片尺寸 | 4.82 mm | 端子类型 | Circular |
| 电缆材料 | Solid or Stranded | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 触头材料 | Copper | 总长度 | 0.797" (20.24mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 连接器颜色 | Red |
| 材料厚度 | .79 mm [ .031 in ] | 绝缘直径 | 3.56 [.140] Max. |
| 绝缘材料 - 类型 | Nylon | 位数 | 1 |
| 外缘宽度 | 0.281" (7.14mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 螺纹/螺钉/孔尺寸 | 5 mm [ .197 in ] | 供应商器件封装 | PIDG |
| 支撑面板厚度 | Insulation Support | 线规或范围 - mm² | 0.30-1.40² [22-16] |
| 外径-未扩张 | 3.56 mm [ .14 in ] | ||
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 产品特性 | Serrated Termination | 检查插槽 | 否 |
| 制造商全称 | AMP | ||
环境参数
| 工作温度 | 105 | ||
