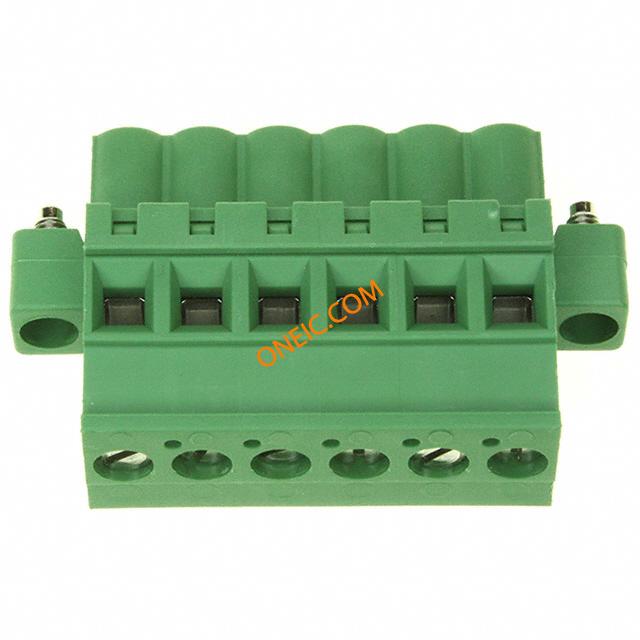

796861-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Terminal Block F 6 POS 5.08mm Screw ST Panel Mount 15A/Contact Terminal Block Connectors TERM BLOCK PLUG 6POS 5.08MM Pluggable Terminal Blocks 6 POS PLUG VERTICAL Conn Terminal Block F 6 POS 5.08mm Screw ST Panel Mount 15A/Contact Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 6 POS TERMI-BLOK PLUG VERTICAL |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 供电电压 | 300 |
| 额定交流电压 | 300 | 跳闸电流 | 15 |
| 最大额定电流 | 15 A | ||
机械参数
| 颜色 | Green | 间距 | 5.08 mm |
| 包装方式 | Bulk | 壳体颜色 | 绿色 |
| 出线方向 | 侧 | 引脚样式 | Side |
| 螺钉尺寸 | M3 | 导线线规 | 12-30 AWG |
| 端接方式 | Screw | 第二连接器 | 否 |
| 外壳颜色 | Green | 安装类型 | Panel Mount |
| 连接器类型 | Plug (left-hand) | 接触镀层 | Tin |
| 法兰特征 | With | 排数 | 1 |
| 螺丝材料 | Brass | 插入件材料 | 磷青铜 |
| 插头进线方向 | 270° | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide 6.6 | 包装数量 | 100 |
| 连接器间距 | Side | 端接样式 | Screw |
| 触点数 | 6 | 位数 | 6 |
| 接线端子类型 | Plug, Female Sockets | 端子螺钉表面处理 | 镍 |
| 螺纹/螺钉/孔尺寸 | 黄铜 | 中心触点材料 | 5.08 [0.200] |
| 螺钉材料 - 镀层 | Nickel | 线规或范围 - mm² | 0.03 â 2.50 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 产品特性 | Flange, Retention Latches (Non-Wire Side) | 制造商全称 | Buchanan |
| 产品子类型 | Connector | 侧面可堆叠 | No |
| 层数 | 1 | 互连系统 | With |
| 每层位数 | 6 | 并排堆叠 | 否 |
