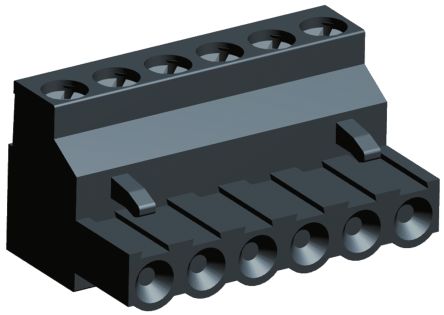

796635-6

点击放大查看

796635-6

制造商
TE Connectivity Ltd.
描述Conn Terminal Block F 6 POS 5.08mm Screw RA Cable Mount 15A/Contact TERM BLOCK PLUG 6POS STR 5.08MM Pluggable Terminal Blocks 0508 PLG 06P STR BLK 30-12 Conn Terminal Block F 6 POS 5.08mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = PlugNot ShroudedHousing Color = BlackSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 5.08mm 节距 6 路 公 黑色 直 插头, 印刷电路板安装, 夹紧螺钉端接 6 POS 5.08MM R/A PLUG,TRM BLK
分类
连接器解决方案接线端子螺丝接线端子
对参数有疑问？问 AI 助手

商业参数

产品Pluggable Terminal Blocks其他名称7966356
产品类别Pluggable Terminal Blocks标准包装数量Bulk
工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant材料阻燃等级UL 94 V-0

电气参数

电流15A电压300V
额定电压300 VAC额定交流电压300
跳闸电流15最大额定电流15 A

机械参数

颜色Black深度15.5mm
间距5.08 mm宽度18.4mm
长度30.48mm材料（通用）尼龙
包装方式Bulk壳体颜色黑色
出线方向侧引脚样式Side
螺钉尺寸M3导线线规12-30 AWG
方向直端接方式Screw
第二连接器否外壳颜色Black
安装类型Cable Mount连接器类型公插
接触镀层Tin法兰特征否
排数1插入件材料磷青铜
插头进线方向180°触头材料Phosphor Bronze
壳体材料Polyamide (PA)包装数量100
端接排数夹紧螺钉端接样式Through Hole
触点数6位数6
接线端子类型Plug, Female Sockets端子螺钉表面处理镍
螺纹/螺钉/孔尺寸黄铜线规或范围 - AWG30-12
线规或范围 - mm²12

产品信息

类型Terminal Block连接器性别F
系列Buchanan产品特性Retention Latches (Non-Wire Side)
层数1互连系统带有
每层位数6并排堆叠是
