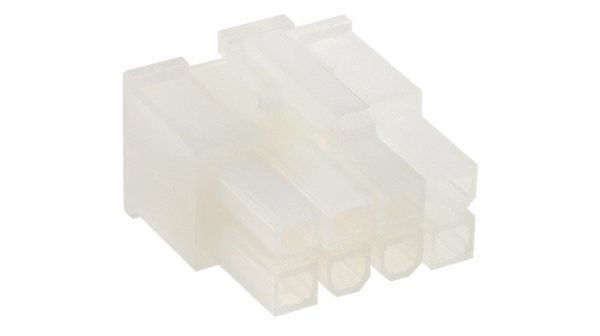

点击放大查看

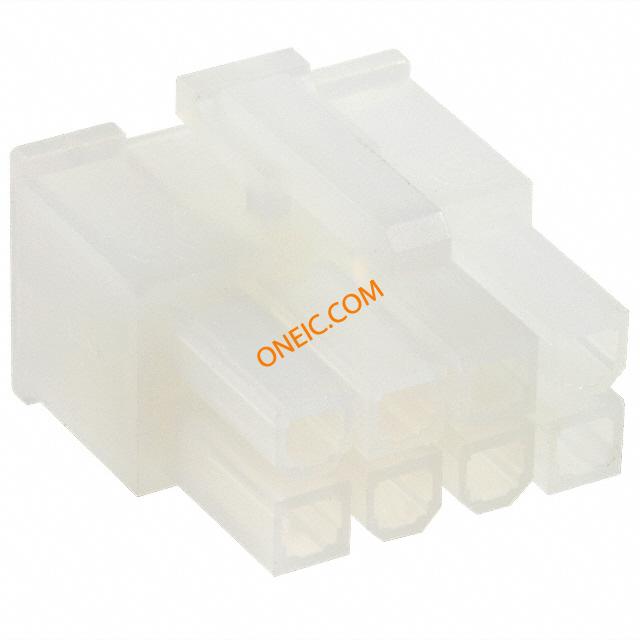

794954-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 8 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN RECEPT 8POS FREE HANGING 8 way receptacle 4.20mm Val-u-Lok Pin & Socket Connectors RECEPTACLE HSG 8P Conn Housing RCP 8 POS 4.2mm Crimp ST Product Highlights:HousingReceptacleNumber of Circuits = 8UL 94V-2Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP Connector;Nylon;Natural;SoftShell;FreeHanging;AMPBrand/PESeries Plug; wire-board; female; PIN:8; w/o terminals; 4.2mm; for cable Female crimp housing Pitch4.2 mm Poles 2 x 4 VAL-U-LOK, 794954-8, TE Connectivity TE Connectivity VAL-U-LOK 系列 2 行 4.2mm 节距 8 路 直 母 压接连接器外壳 8P RCPT VAL-U-LOK V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | 208567 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 极数 | 2 x 4 |
| 供电电压 | 600 | 中心频率 | 带有 |
| 最大额定电流 | 9 A | 最小供电电压 | 600VAC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Natural | 深度 | 20mm |
| 间距 | 4.2 mm | 宽度 | 20 mm [ .787 in ] |
| 高度 | 11.8 mm [ .464 in ] | 长度 | 18.4mm |
| 密封型 | Not Sealed | 重量 | 2 g |
| 材料（通用） | Nylon | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 方向 | 直 |
| 排间距 | 0.165" (4.20mm) | 触头类型 | Female Socket |
| 柱间距 | 4.2mm | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Without | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 2 |
| 封装形式 | Receptacle | 插入力 | 15 |
| 壳体材料 | Nylon | 总长度 | 18.4 mm |
| 包装数量 | 1 | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 8 | 接触件端接 | Crimp |
| 绝缘直径 | 1.2 – 3.1 mm [ .047 – .122 in ] | 位数 | 8 |
| 兼容外壳尺寸（如TM-700等） | 印刷电路板 | 典型触点布局 | 矩阵 |
| 第一连接器安装特征 | 2x4 | ||
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | PE | CAD图纸 | 3D CAD Model |
| 产品子类型 | Housing | 适配器系列 | VAL-U-LOK |
| 单元数量 | 1 | 连接方式 | Wire-Board |
| 电路数 | 8 | 选择性装载 | No |
| 适用产品/相关产品 | Wire-to-Board Connector, Wire-to-Panel Connector, Wire-to-Wire Connector | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
文档与媒体
相关型号
1586315-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 18-22AWG 30GOLD Pin & Socket Connectors SOCKET 22-18 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocket4.20 mm CenterlineWire Range = 0.20-0.80² [24-18] mm [AWG]Phosphor Bronze MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,24-18AWG,GOLDPLATING VAL-U-LOK SKT PHBZ AU 24-18 LP
1586018-8
te connectivity / amp
Conn Housing PL 8 POS 4.2mm Crimp ST Panel Mount VAL-U-LOK Series Connector System CONN PLUG HOUSING 8POS PANEL MT Pin & Socket Connectors 8P PM PLG VALULOK V0 Conn Housing PL 8 POS 4.2mm Crimp ST Panel Mount Product Highlights:4.20 mm CenterlineConnectorApplies To WireWire-to-Wire/Wire-to-PanelHousingSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG,PANELMOUNT,VAL-U-LOK,8POS,DUALROW,UL94V-0 8P PM PLUG VAL-U-LOK V0
794958-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKET 26-22AWG BRASS TIN Crimp skt contact 26-22 awg tin Pin & Socket Connectors SOCKET 26-22 Reel of 5000 794958-1 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, CRIMP, SOCKET, 26-22AWG Contact,Socket,VAL-U-LOK,22-26AWG,Brass VAL-U-LOK Series 22-26 AWG Insulation Crimp Strain Relief Socket Contact TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡镀镍触点 VAL-U-LOK SKT BR SN 22-26AWG
1586000-8
te connectivity / amp
Conn Housing PL 8 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN PLUG 8POS FREE HANGING Pin & Socket Connectors FREE HANGING PLUG 8P Conn Housing PL 8 POS 4.2mm Crimp ST Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP Connector,SoftShell;Nylon;Natural;Wire-to-WireandWire-to-Board;8 8P FH PLUG VAL-U-LOK V2
1586041-8
te connectivity / amp
Conn Wire to Board PIN 8 POS 4.2mm Solder RA Thru-Hole VAL-U-LOK Series Connector System CONN HEADER 8POS R/A W/O PEGS Pin & Socket Connectors RA HDR W/O PEGS 8P Conn Power PIN 8 POS 4.2mm Solder RA Thru-Hole 8 Terminal 1 Port Conn Power PIN 8 POS 4.2mm Solder RA Thru-Hole 8 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 8UL 94V-2Number of Rows = DualRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, RIGHT ANGLE, UL94V-2, 8WAY Connector;PinHeader;UL94V-2 8P VAL-U-LOK R/A HDR V2
1586037-8
te connectivity / amp
Conn Power HDR 8 POS 4.2mm Solder ST Thru-Hole 8 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 8POS VERT W/O PEGS TE Connectivity PE Series 4.2mm Pitch 8 Way Straight Heavy Duty Power Connector, Solder Termination, 9A Pin & Socket Connectors VERT HDR NO PEGS 8P Conn Power HDR 8 POS 4.2mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 8UL 94V-2Number of Rows = DualVertical Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, VERTICAL, W/DRAIN HOLES, 94V-2 Connector;PinHeader;UL94V-2 Straight header Pitch4.2 mm Poles 2 x 4 VAL-U-LOK, 1586037-8, TE Connectivity TE Connectivity VAL-U-LOK 系列 4.2mm节距 8路 直 RJ45-Rangierfeld, 焊接端接, 9A , 通孔 8P VERT HDR VAL-U-LOK V2
794956-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKT 18-22AWG PHOS BRZ TIN Contact female 0.2-0.8mm² Val-u-Lok 794956-3 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,24-18AWG,TINPLATING VAL-U-LOK Series 18-24 AWG Insulation Crimp Strain Relief Socket Contact TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT PHBZ SN 22-18AWG
794958-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKT 22-26AWG PHOS BRZ TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,26-22AWG,TINPLATING VAL-U-LOK Series 22-26 AWG Insulation Crimp Strain Relief Socket Contact VAL-U-LOK SKT PHBZ SN 22-26AWG
794956-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKET 18-22AWG BRASS TIN Crimp skt contact 22-18 awg tin Pin & Socket Connectors SOCKET 22-18AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, FEMALE, 22-18AWG CONTACT, CRIMP, SOCKET, 22-18AWG, REEL Contact,Socket,VAL-U-LOK,24-18AWG,Brass TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT BR SN 22-18AWG
1586039-8
te connectivity / amp
Conn Power HDR 8 POS 4.2mm Solder ST Thru-Hole 8 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 8POS VERT W/PEGS TE Connectivity VAL-U-LOK Series 4.2mm Pitch 8 Way 2 Row Straight PCB Header, Solder Termination, 9A Pin & Socket Connectors VERT HDR W/PEGS 8P Conn Power HDR 8 POS 4.2mm Solder ST Thru-Hole 8 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP Connector;PinHeader;UL94V-2 TE Connectivity VAL-U-LOK 系列 4.2mm节距 8路 (2排) 直 PCB 针座, 焊接端接, 9A , 通孔 8P VAL-U-LOK VRT HDR W/P V2
794953-8
te connectivity / amp
Conn Housing PL 8 POS 4.2mm ST VAL-U-LOK Series Connector System CONN PLUG 8POS PANEL MOUNT Pin & Socket Connectors PANEL MOUNT PLUG 8P Conn Housing PL 8 POS 4.2mm Crimp ST Panel Mount Conn Housing PL 8 POS 4.2mm Crimp ST Panel Mount Product Highlights:HousingPlugNumber of Circuits = 8UL 94V-2Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP Connector,SoftShell;Nylon;Natural;Wire-to-WireandWire-to-Board;8;Panel 8P PM PLUG VAL-U-LOK V2
1586315-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 18-22AWG TIN 4.2 PE series 22-18 awg contact socket Pin & Socket Connectors SOCKET 22-18AWG BRASS-TIN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 18AWG TO 22AWG, CRIMP 4.2SOCKET,BRASS-TIN22-18 Contact; female; 0.2÷0.8mm2; 18÷24AWG; VAL-U-LOK; tinned; crimped Crimp socket Female 22...18 AWG, 1586315-1, TE Connectivity TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT BR SN 24-18 LP
794956-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKET 18-22AWG BRASS GOLD Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 22-18AWG, CRIMP CONTACT,SOCKET,VAL-U-LOK,24-18AWG,GOLDPLATING VAL-U-LOK SKT BR AU 22-18AWG
1586055-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount CONN SOCKET 16AWG BRASS TIN Pin & Socket Connectors VAL-U-LOK SKT BR SN Contact SKT Crimp ST Cable Mount Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 16AWG, CRIMP CONTACT,SOCKET,VAL-U-LOK,16AWG,TINPLATING 16 AWG Socket Crimp VAL-U-LOK Connector Contact VAL-U-LOK SKT BR SN 16AWG
1586317-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 22-26AWG 30GOLD Pin & Socket Connectors SOCKET 26-22 BULK 1586317-2 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,26-22AWG,GOLDPLATING 1586317 Series 22-26 AWG Gold Socket VAL-U-LOK Connector System VAL-U-LOK SKT BR AU 26-22 LP
1586315-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 18-22AWG 30GOLD Pin & Socket Connectors SOCKET 22-18 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,VAL-U-LOK,24-18AWG,GOLDPLATING 18-24 AWG Socket Wire/Cable Insulation Crimp VAL-U-LOK Connector VAL-U-LOK SKT BR AU 24-18 LP
1586315-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 18-22AWG TIN Pin & Socket Connectors SOCKET 22-18 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,VAL-U-LOK,22-18AWG 24-18 AWG Socket Crimp VAL-U-LOK Series Connector System VAL-U-LOK SKT PHBZ SN 24-18 LP
1586317-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 22-26AWG TIN Pin & Socket Connectors SOCKET 26-22 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,26-22AWG,TINPLATING VAL-U-LOK SKT PHBZ SN 26-22 LP
1586317-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 22-26AWG TIN 4.2 PE series 26-22 awg contact socket Pin & Socket Connectors SOCKET 26-22 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT SOCKET, 26-22AWG 4.2SOCKET,BRASS-TIN26-22 Crimp socket Female 26...22 AWG, 1586317-1, TE Connectivity TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT BR SN 26-22 LP

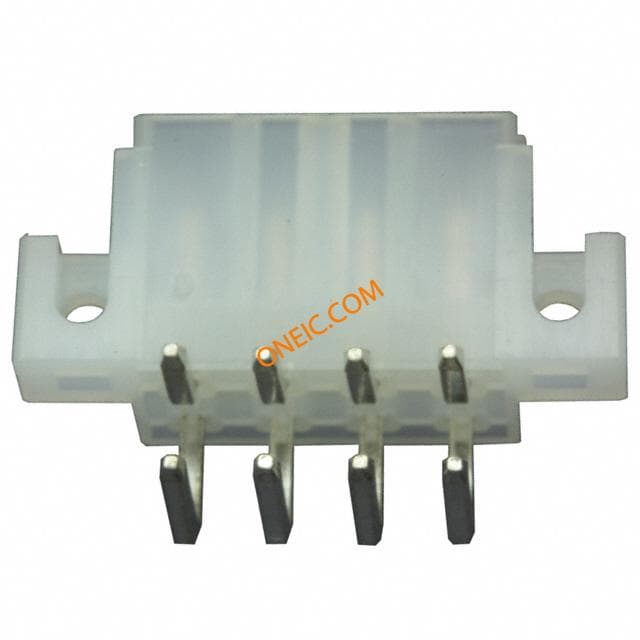

1586043-8
