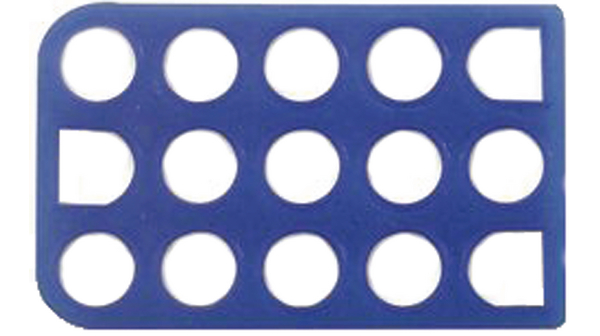

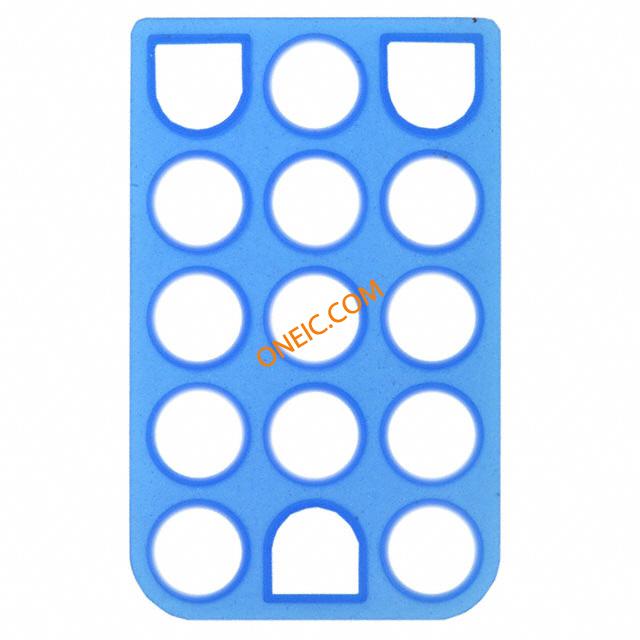

794281-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Interface Seal Plug 15 POS Silicon Rubber Blue .250" Centerline, 600 V, 19 - 36 A max CONN INTERFACE SEAL 15POS UMNL 15 way Mate-N-Lok interface seal Power to the Board SPLASH PROOF SEAL 15 Interface Connector Accessories Interface Seal Plug 15 POS Silicon Rubber Blue Product Highlights:Interface SealUniversal MATE-N-LOKNot CompactPCINumber of Circuits = 15Matrix Contact LayoutSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP INTERFACE SEAL, 15WAY Connector,SoftShell;UniversalMATE-N-LOK;15;19;600;SiliconRubber;Blue Profile gasket; 6.35mm; PIN:15; Pin layout:3x5; Gasket: silicone Sealing plate, 794281-1, TE Connectivity TE Connectivity Universal MATE-N-LOK系列 15路 蓝色 硅橡胶 电线密封, 适用于MATE-N-LOK连接器 15P UMNL INTERFACE SEAL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 600 V | 输出数量 | 15 |
| 最大额定电流 | 19 A | 连接器类型 - 电压输入 | UniversalMATE-N-LOK |
机械参数
| 颜色 | Blue | 深度 | 20.32 mm |
| 重量 | 0.041 | 包装方式 | Bulk |
| 导线线规 | :0.5mm² | 柱间距 | 6.35mm |
| 外壳镀层 | :Silicone Rubber | 安装样式 | Press Fit |
| 连接器用途 | profile gasket | 壳体材料 | Silicon Rubber |
| 总长度 | 33.02 mm | 包装数量 | 20 |
| 主要材料 | Interconnect | 端接样式 | Quick Connect |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Blue |
| 触点数 | 15 | 位数 | 15 |
| 中心触点表面处理 | 0.25 | 绝缘材料 - 材质 | silicone |
| 典型触点布局 | Matrix | 线规或范围 - AWG | 30-16 |
| 线规或范围 - mm² | :2.0mm² | 第一连接器安装特征 | 3x5 |
| 外径-未扩张 | :3.3mm | ||
产品信息
| SPG | 20 | 类型 | Seal |
| 系列 | :Sealed Universal Mate-N-Lok | 产品特性 | Splash-Proof |
| CAD图纸 | 3D CAD Model | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Accessories | 附件类型 | Seal |
| 适配器系列 | Universal MATE-N-LOK | 单元数量 | 1 |
| 射频系列/标准 | 794281 | 适用产品/相关产品 | Universal MATE-N-LOK Series |
