点击放大查看

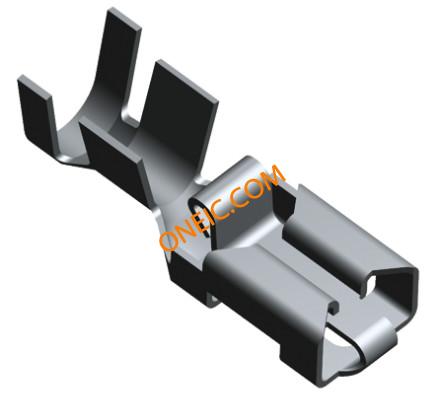

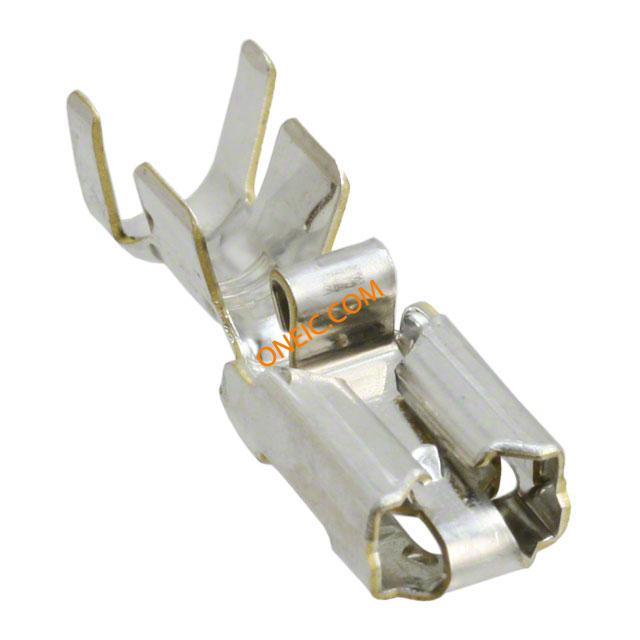

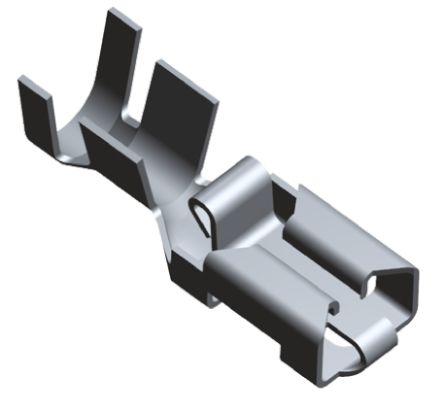

790319-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Automotive Connectors RECPT 12-10 AWG Positive Lock Connectors CONN RCPT POS LOCK 12-10AWG .250 Positive lock,receptacle,12-10awg,6.35mm Contact SKT Crimp ST Cable Mount Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IReceptacle Style = StraightWire Range = 3.00-6.00² [12-10] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, TERMINAL, FEMALE DISCONNECT 0.25IN CRIMP POSITIVELOCKRECEPTA,RECEP6,35POSITIVELOCKMKI TE Connectivity Positive Lock .250 Mk I 系列 母 压接接线端子, 压接, 镀锡触点 PL RECEPTACLE 3.3-6 MM2 PTPBR |
| 分类 |
商业参数
| 产品 | Quick Connect Terminals | 其他名称 | A99669CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 1250 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 深度 | 7.3 mm | 间距 | Not Required mm |
| 表面处理 | Pre-Tin | 高度 | 6.8 mm |
| 重量 | 0.003 | 材料（通用） | Brass |
| 按键颜色 | None | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 绝缘类型 | Not Insulated |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳颜色 | Not Required |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | :0.25" x 0.032" |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Tin |
| 安装样式 | Cable | 连接器样式 | Straight |
| 厚度（最大） | 0.41 [0.016] | 触头材料 | Brass |
| 壳体材料 | Not Required | 绝缘颜色 | :Uninsulated |
| 总长度 | Mark I | 包装数量 | Strip |
| 端接样式 | Crimp | 触点数 | Not Required |
| 绝缘直径 | 3.43-5.08 [.135-.200] | 线规或范围 - AWG | 12-10 |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | :- | 编码、键控 | No |
| 产品子类型 | Receptacle | ||
