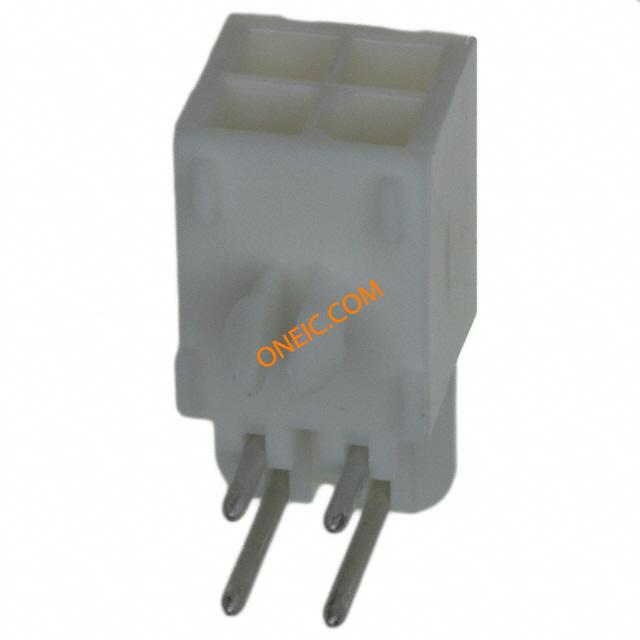

770968-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power PIN 4 POS 4.14mm Solder RA Thru-Hole 4 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 4POS RTANG .163 AU Pin & Socket Connectors HEADER ASSY 4P R/A 2000 Conn Power PIN 4 POS 4.14mm Solder RA Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,04PMINIUMNLR/AHDRASSYAU 04P MINI UMNL R/A HDR ASSY AU |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9.5 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | White | 间距 | 4.14 mm |
| 高度 | 11.86 mm | 包装方式 | Bulk |
| 排间距 | 0.163" (4.14mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polyamide (PA) | 总长度 | 12.7 mm |
| 主要材料 | InterconnectSystem | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 位数 | 4 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | Mini Universal Mate-N-Lok | 产品特性 | Board Lock |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Headers |
| 端口数 | 1 Port | 加载位置数 | All |
环境参数
| 工作温度 | -20C to 105C | 结工作温度 | 105C |
