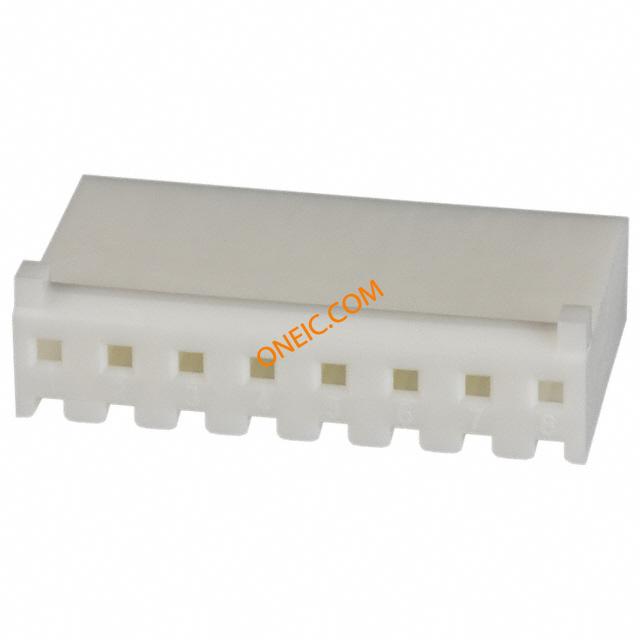

770849-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS W/RAMP SL156 Headers & Wire Housings SL156 RECPT HSG 8P Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 8Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 8POS, 3.96MM 08PSL156HSGW/LCKRMP&TABS 08P SL156 HSG W/LCK RMP & TABS |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | CSA,UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V | 开关功能 | Locking Ramp |
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Natural | 深度 | 16.76 mm |
| 间距 | 3.96 mm | 重量 | 0.00204 |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 出线方向 | 180° | 导线线规 | 18-24 AWG |
| 触头类型 | Female Socket | 极化 | Polarizing Tab |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Crimp | 接触镀层 | 3.96 [0.156] |
| 紧固类型 | Locking Ramp | 安装样式 | Cable |
| 排数 | 1 | 连接器用途 | Receptacle |
| 锁定特性 | Locking Ramp | 触头材料 | :- |
| 线缆终端 | :Crimp | 壳体材料 | Nylon |
| 总长度 | 31.65 mm | 安装特性 | Without |
| 包装数量 | 500 | 面板安装类型 | Without |
| 主要材料 | WiretoBoard | 插针孔直径 | 0.156" |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 8 |
| 接触件端接 | Crimp | 绝缘直径 | Standard |
| 位数 | 8 | ||
产品信息
| 备注 | Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | SL-156 |
| 产品特性 | Polarizing Key | 制造商全称 | AMP |
| 产品子类型 | SL-156 Housings | 应用细节 | Wire-to-Board |
环境参数
| 工作温度 | -55C to 105C | ||
