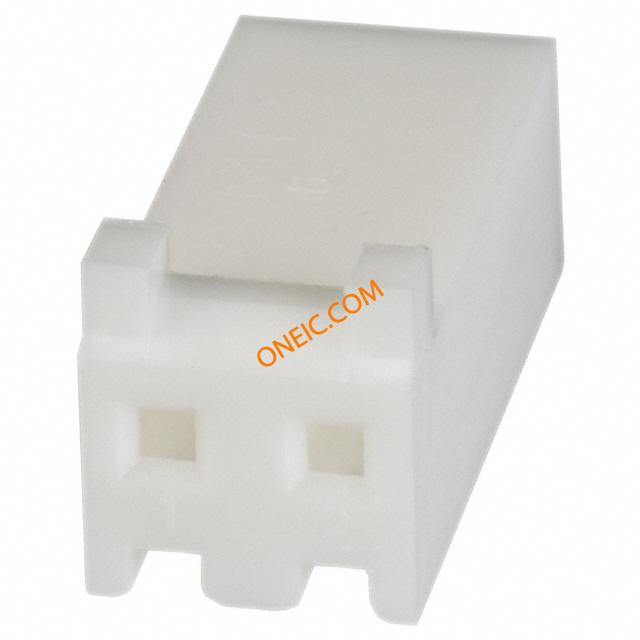

770849-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS W/RAMP SL156 2 w housing with polarising tabs Headers & Wire Housings 2P RECP HSG SL-156 Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 2Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 2POS, 3.96MM 02PSL156HSGW/LCKRMP&TABS TE Connectivity SL-156 系列 3.96mm 节距 2 路 直 母 电缆安装 压接连接器外壳 02P SL156 HSG W/LCK RMP & TABS |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | CSA,UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - SL-156 Series | 额定电压 | 250 V |
| 开关功能 | Locking Ramp | 最大额定电流 | 5 A |
机械参数
| 颜色 | Natural | 深度 | 16.76mm |
| 间距 | 3.96 mm | 长度 | 7.92mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 遮蔽类型 | No | 出线方向 | 180° |
| 导线线规 | 18-24 AWG | 触头类型 | Female Socket |
| 极化 | Polarizing Tab | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Crimp |
| 接触镀层 | 3.96 [0.156] | 紧固类型 | Locking Ramp |
| 排数 | 1 | 连接器用途 | Receptacle |
| 锁定特性 | Locking Ramp | 触头材料 | :- |
| 壳体材料 | Nylon | 总长度 | 7.92 mm |
| 安装特性 | Without | 包装数量 | 500 |
| 面板安装类型 | Without | 主要材料 | WiretoBoard |
| 插针孔直径 | 0.156" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 2 | 接触件端接 | Crimp |
| 绝缘直径 | Standard | 位数 | 2 |
产品信息
| 备注 | Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | SL-156 |
| 产品特性 | Polarizing Key | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | SL-156 Housings |
| 应用细节 | Wire-to-Board | 适用产品/相关产品 | Wire-to-Board Economy Power Connector |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号

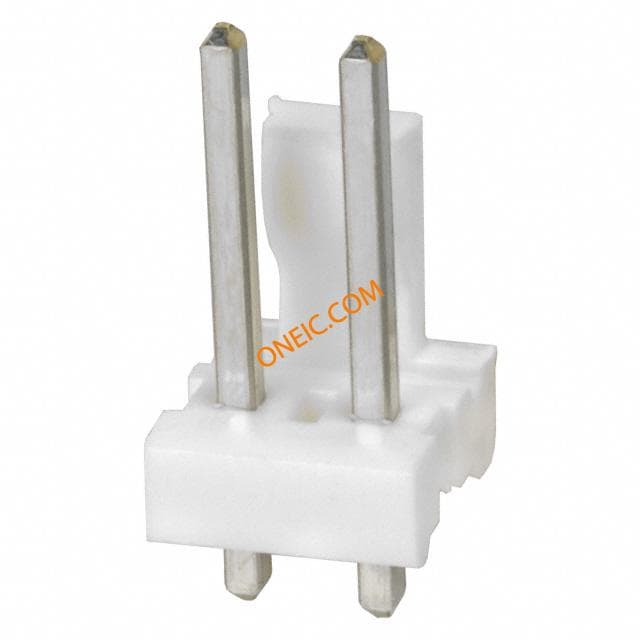

644752-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN Headers & Wire Housings HEADER ASSY 2 POS Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 2POS, 3.96MM MTA-156HEADER-TIN,02PMTA156HDRASSYSQSTRF/L 02P MTA156 HDR ASSY SQ STR F/L
640445-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 2P Square post tin Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 2WAY Connector,MTA-156;Male;2;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:2 Pin header straight 2P, 640445-2, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY FL/STR SN
641208-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS .156 30 GOLD Headers & Wire Housings FRCTN LK HDR STR 2P Square post gold 02P MTA156 HDR ASSY FL ST 30AU
3-641208-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS .156 30 GOLD TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 2P Square post gold Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:2 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONN, PCB HEADER 2 PINS MTA-156HEADERGOLD,02PMTA156HDRASSYFLSTLF TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY FL ST LF

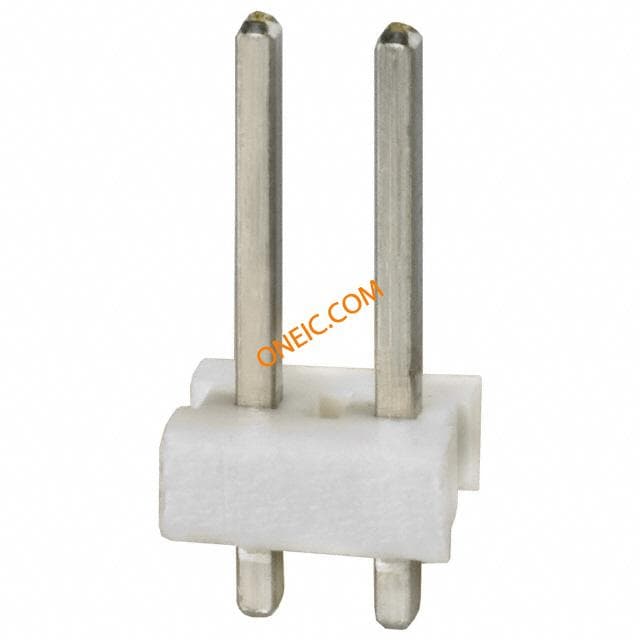

640383-2
te connectivity / amp
Conn Unshrouded Header HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 2P Square post tin Conn Unshrouded Header HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector,MTA-156;Male;2;CopperAlloy;7;600;0.156in.;Polyester;White 02P MTA156 HDR ASSY STR SQ SN

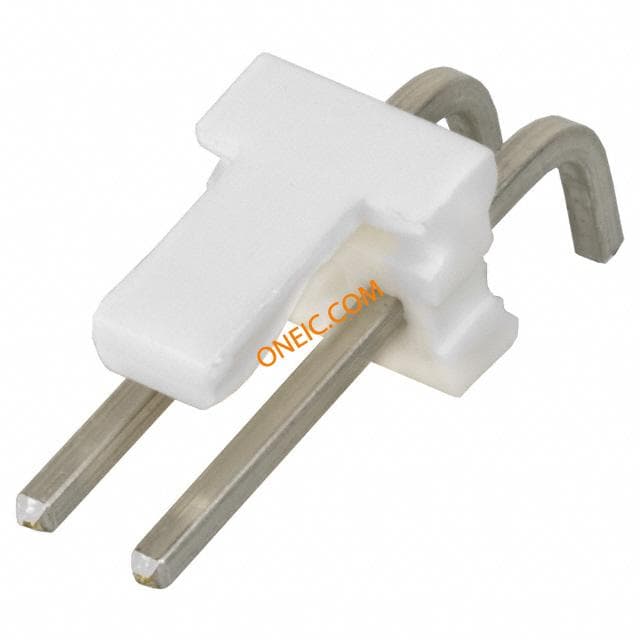

640389-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR RA 2P Square post tin Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.156", 2WAY Connector,MTA-156;Male;2;CopperAlloy;7;600;0.156in.;Polyester;White Pin strip 90° 2P, 640389-2, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY SQ R/A F/L
640385-2
te connectivity / amp
Conn Unshrouded Header HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .156 TIN Headers & Wire Housings FLAT 2P RA HEADER Square post tin Conn Unshrouded Header HDR 2 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONN, HEADER, 2WAY, 0.156IN 2WR/AHEADER 02P MTA156 HDR ASSY SQ R/A
644749-2
te connectivity / amp
Conn Unshrouded Header HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS VERT .156 TIN Headers & Wire Housings 02P MTA156 HDR ASSY STR SQ SN 02P MTA156 HDR ASSY STR SQ SN 02P MTA156 HDR ASSY STR SQ SN Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
641120-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS VERT .156 GOLD Headers & Wire Housings 02P MTA156 HDR ASSY FL/ST 15AU Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

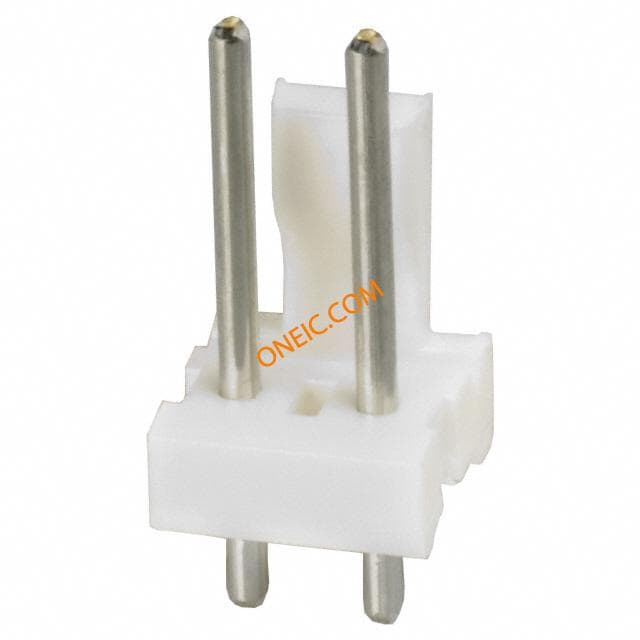

640388-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 2P Round post tin Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 2POS, 3.96MM HEADERASSEMBLY,MTA-156,2POSITION,STRAIGHT,FRICTIONLOCK TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY RN STR F/L
644631-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS VERT .156 GOLD Headers & Wire Housings 02P MTA156 HDR ASSY STR 30AU 02P MTA156 HDR ASSY STR 30AU 02P MTA156 HDR ASSY STR 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
641121-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS R/A .156 GOLD Headers & Wire Housings 02P MTA156 HDR ASSY FL/RA 15AU 02P MTA156 HDR ASSY FL/RA 15AU 02P MTA156 HDR ASSY FL/RA 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644633-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS R/A .156 GOLD Headers & Wire Housings 02P MTA156 HDR ASSY R/A 30AU Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644613-2
TE Connectivity / AMP
Headers & Wire Housings RA SQ HDR ASSY 2P 2000 MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS R/A .156 TIN
644617-2
TE Connectivity / AMP
Headers & Wire Housings 02P MTA156 HDR ASY MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS R/A .156 TIN

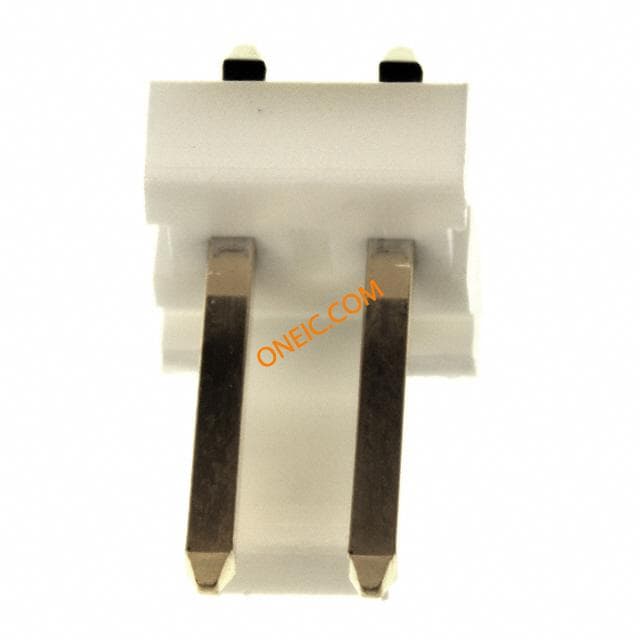

641119-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS VERT .156 GOLD Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA156 HDR ASSY FL/ST 15AU
644751-2
te connectivity / amp
Conn Unshrouded Header HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .156 TIN Headers & Wire Housings 2P HDR ASSY R/A Conn Unshrouded Header HDR 2 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA156 HDR ASSY R/A
641210-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 2POS 30AU Headers & Wire Housings FRCTN LK HDR RA 2P Square post gold Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA156 HRD FL RA FB 30AU

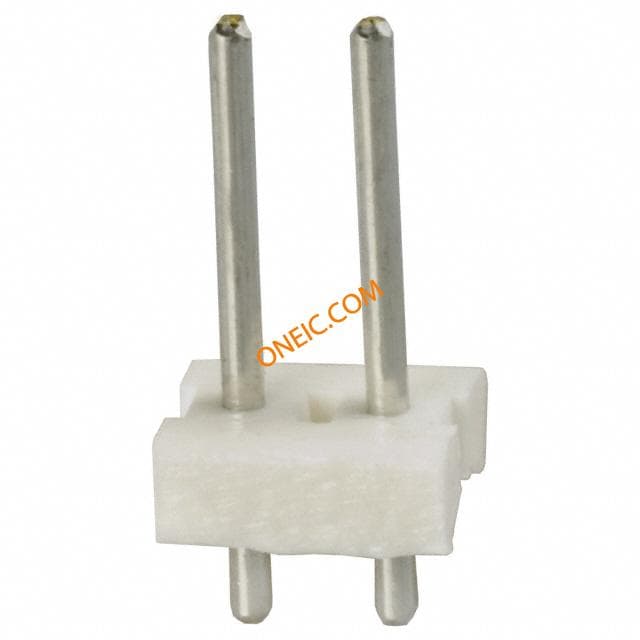

640384-2
