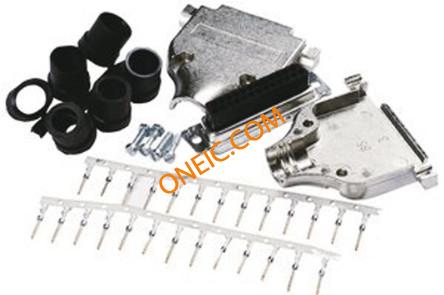

点击放大查看

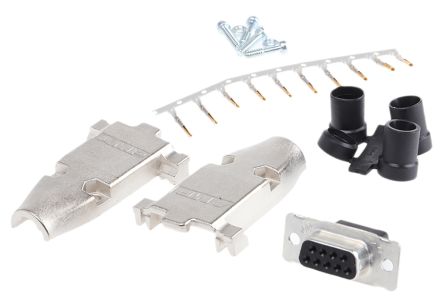

749806-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Bulk D-Sub Standard Connectors DSUB E09S CRIMP KIT Standard Cable Connectors CONN D-SUB RCPT 9POS CRIMP SHLD AMPLIMITE HDP20 d-sub socket kit, 9 way Conn D-Subminiature SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Bulk Product Highlights:Cable Connector and ClampProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, D-SUB Conn;D-Sub;CableSocket;9Pos;STR;HDP-20Series;CrimpSnap;24-20AWG;ShieldedKit TE Connectivity AMPLIMITE HDP-20 9触点 KIT,HDP-20,RCPT,SIZE 1, 9 POSN |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 海关税号 | 85366910 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | ULRecognized,ULListedandCSACertified |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDP-20 Series | 额定电压 | 250V |
| 最大额定电流 | Varies by Wire Gauge | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 52.6 mm |
| 高度 | 15.75 mm | 重量 | 0.05614 |
| 材料（通用） | Stainless Steel | 包装方式 | Bulk |
| 出线方向 | Straight(180°) | 外壳尺寸 | 1 |
| 导线线规 | 24-20 | 屏蔽类型 | Yes |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Signal | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 外壳镀层 | Zinc | 行程角度 | Straight |
| 电缆材料 | Polypropylene | 连接器类型 | Crimp Snap |
| 接触镀层 | Gold | 法兰特征 | Cable Side; Male Short Screw (4-40) |
| 安装样式 | Through Hole | 排数 | 2 |
| 螺丝材料 | Steel | 外壳材料（壳体） | Steel |
| 绑带材料 | Stainless Steel | 连接器样式 | D-Sub |
| 插入件材料 | Nylon | 锁定特性 | Mounting Holes |
| 本体材料 | :Metal | 屏蔽材料 | Metal |
| 触头材料 | Steel | 壳体材料 | Nylon, Polyester GF |
| 总长度 | 30.81 mm | 包装数量 | Bulk |
| 主要材料 | D-Subminiature | 电缆端接方式 | One-Piece Quick Snap |
| 接地凹痕 | Without | 端接样式 | Crimp |
| 触点数 | 9 | 接触件端接 | :Crimp |
| 绝缘直径 | 4.70 â 8.13 [0.185 â 0.320] | 位数 | 9 |
| 外壳尺寸-插件 | Full Metal Shell | 衬套/护套类型 | With |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | Flash |
| 螺钉材料 - 镀层 | Zinc | 线规或范围 - AWG | 0.2 - 0.56 [24-20] |
| 控制侧电缆固定器 | With | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 类型 | D-Subminiature | 等级 | Standard |
| 连接器性别 | SKT | 系列 | HDP-20 |
| 产品特性 | Backshell, Shielded | 制造商全称 | AMP |
| 产品子类型 | Cable Connector and Clamp | 端口数 | 1 Port |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | :100 | 工作温度 | -55°C ~ 105°C |
