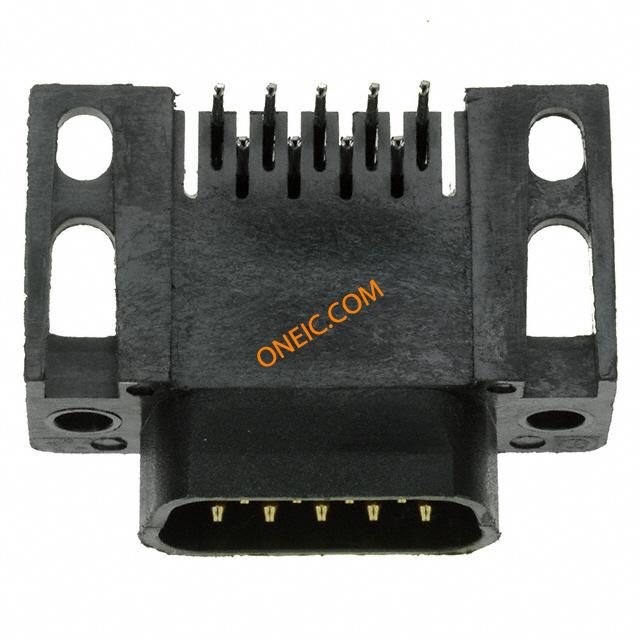

745828-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | D-Sub Standard Connectors 09 APFL PLUG RA 478 280 Standard Board Mount Connectors CONN PLUG D-SUB RT/ANG 9POS GOLD |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 560 |
| 工厂包装数量 | 140 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 最大额定电流 | 6A | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 包装方式 | Tray | 外壳尺寸 | 1 |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | Without | 触点形状 | Round |
| 安装类型 | Right Angle | 外壳镀层 | Tin |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.047 â 0.063 [1.19 â 1.60] |
| 连接器样式 | D-Sub | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 面板安装类型 | Without | 尺寸/外形 | 0.66 [.026] |
| 接地凹痕 | Without | 外形尺寸 长x宽x高 | 12.14 [.478] |
| 端接样式 | Through Hole | 连接器颜色 | None |
| 触点数 | 9 | 位数 | 9 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 3.05 [.120] |
| 端子柱长度 | 3.18 [0.125] | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 连接器性别 | Plug | 系列 | HD-20 |
| 制造商全称 | AMP | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
文档与媒体
