745412-7

点击放大查看

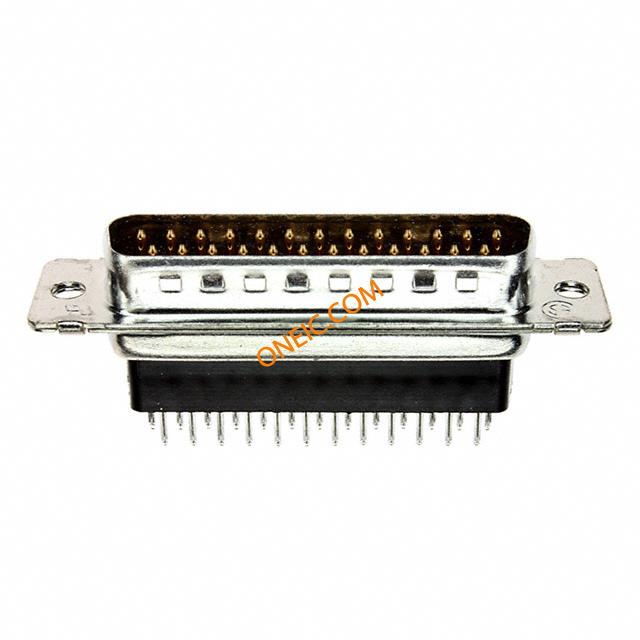

745412-7

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 25 POS 2.76mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors HD-20 25P PLUG 270 Standard Board Mount Connectors CONN D-SUB PLUG STR 25POS PCB AU Conn D-Subminiature PIN 25 POS 2.76mm Solder ST Thru-Hole 25 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 25 PLUG SP/MS STD
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A23144产品类别D-Sub Standard Connectors
标准包装数量Rail / Tube工厂包装数量10

合规参数

RoHSNo防护类型UL 94V-0
无铅定义Not suitable for lead free processing标准编号UL E28476
RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A

机械参数

颜色Black间距2.76 mm
密封型No外形尺寸(长x宽)3
锁定类型不带包装方式Tube
壳体颜色黑色引脚样式正方形
外壳尺寸3端接方式Solder
触头类型Signal柱间距.108
外壳表面处理锡第二连接器Without
触点形状Square安装类型Through Hole
外壳镀层Tin连接器类型Plug, Male Pins
接触镀层Gold法兰特征Housing/Shell (Unthreaded)
接地类型Without安装样式Through Hole
排数2外壳材料（壳体）Steel
电路板厚度0.093 – 0.125 [2.36 – 3.18]连接器样式D-Sub
插入件材料Thermoplastic外形（宽 x 高）High
触头材料Brass壳体材料Thermoplastic
安装特性安装孔包装数量10
面板安装类型Without尺寸/外形0.64 [.025]
接地凹痕With端接样式Through Hole
连接器颜色None外径.64 mm [ .025 in ]
触点数25位数25
外壳尺寸-插件Full Metal安装孔直径3.05 [.120]
外壳材料及表面处理Steel, Tin Plated端子柱长度4.78 [0.188]
接触镀层厚度Flash外壳与棱镜材料否
外壳尺寸，连接器布局3 (DB, B)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
产品特性Grounding Indents可密封否
制造商全称AMP预装是
产品子类型连接器其他规格是

环境参数

工作温度-55°C ~ 105°C封装热阻2.36 – 3.18 mm [ .093 – .125 in ]

文档与媒体

在线文档
745412-7?RQPN=745412-7
