745182-2

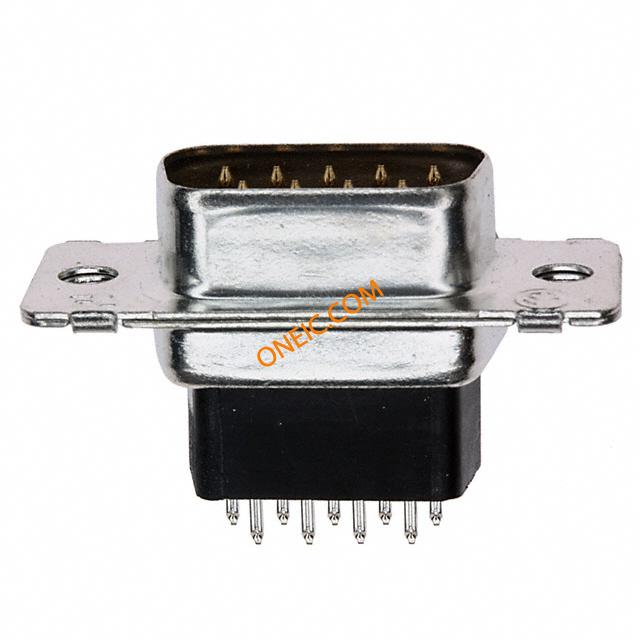

点击放大查看

745182-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors HD-20 9P PLUG 459 Standard Board Mount Connectors CONN D-SUB PLUG STR 9POS PCB AU Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 09 PLUG SP/MS STD
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Rail / Tube
工厂包装数量17

合规参数

RoHSNo防护类型UL 94V-0
抗辐射加固No无铅定义Not suitable for lead free processing
标准编号UL E28476RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant
材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A最小供电电压125VDC/125VAC

机械参数

颜色Black深度12.54 mm
间距2.74 mm高度17.5 mm
密封型No外形尺寸(长x宽)1
锁定类型不带包装方式Tube
壳体颜色黑色引脚样式正方形
外壳尺寸1端接方式Solder
触头类型Signal柱间距.109
外壳表面处理锡第二连接器Without
触点形状Square安装类型Vertical
外壳镀层Tin连接器类型Plug, Male Pins
接触镀层Gold法兰特征Housing/Shell (Unthreaded)
接地类型Without安装样式Through Hole
排数2外壳材料（壳体）Steel
电路板厚度0.062 – 0.093 [1.57 – 2.36]连接器样式D-Sub
插入件材料Thermoplastic外形（宽 x 高）High
触头材料Brass壳体材料Thermoplastic
总长度30.81 mm安装特性安装孔
包装数量17面板安装类型Without
尺寸/外形0.64 [.025]接地凹痕Without
端接样式Through Hole连接器颜色None
外径.64 mm [ .025 in ]触点数9
位数9外壳尺寸-插件Full Metal
安装孔直径3.05 [.120]外壳材料及表面处理Steel, Tin Plated
端子柱长度3.18 [0.125]接触镀层厚度Flash
外壳与棱镜材料否外壳尺寸，连接器布局1 (DE, E)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别Male系列HD-20
可密封否制造商全称AMP
预装是产品子类型连接器
端口数1 Port

环境参数

工作温度-55°C ~ 105°C封装热阻1.57 – 2.36 mm [ .062 – .093 in ]

文档与媒体

在线文档
745182-2?RQPN=745182-2
