点击放大查看
6828130-1
| 制造商 | TE Connectivity Ltd. |

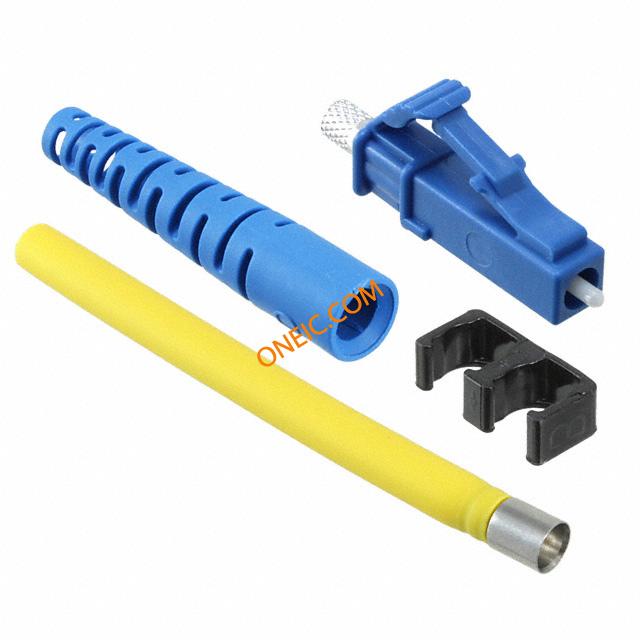

| 描述 | Conn LC Single Mode Duplex PL ST Cable Mount 0.2dB Individual Fiber Optic Connectors CO KIT, LC, SM, DUP TIGHT Tight Jacketed LC & SC Connectors CONN FIBER LC PLUG DUPLX Conn LC Single Mode Duplex PL ST Cable Mount 0.2dB Individual Product Highlights:SinglemodeFiber Optic Connector Type = DuplexCable Type = Tight Jacket 1.6-2.0mmLC Connector KitPackaging Method = IndividualSearch Keywords:Fiber Optic connector, LC, SC, duplex, simplex, tight jacket, tight jacketed cable, non pull-proof, multimode, singlemode |
| 分类 |
商业参数
| 产品 | Kits | 其他名称 | 68281301 |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 插入损耗 | 0.2 dB | ||
机械参数
| 颜色 | Blue | 连接器护套颜色 | Blue |
| 电缆类型 | Tight Jacket 1.6-2.0mm | 基体材料 | Thermoplastic |
| 外壳颜色 | Blue | 安装类型 | Cable Mount |
| 电缆直径 | 2.0mm | 连接器类型 | LC |
| 紧固类型 | Latch Lock | 连接器样式 | LC |
| 套圈材料 | Zirconia | 壳体材料 | Polyphenylsulfone |
| 包装数量 | Individual | ||
产品信息
| 工作模式 | Single Mode | 类型 | LC |
| 连接器性别 | PL | 产品特性 | Used with 1.6 - 2 mm jacketed cable |
| 光纤类型 | Duplex | 端口样式 | Duplex |
| 制造商全称 | AMP | 附件类型 | Connector Kit |
| 单工/双工 | Duplex | ||
