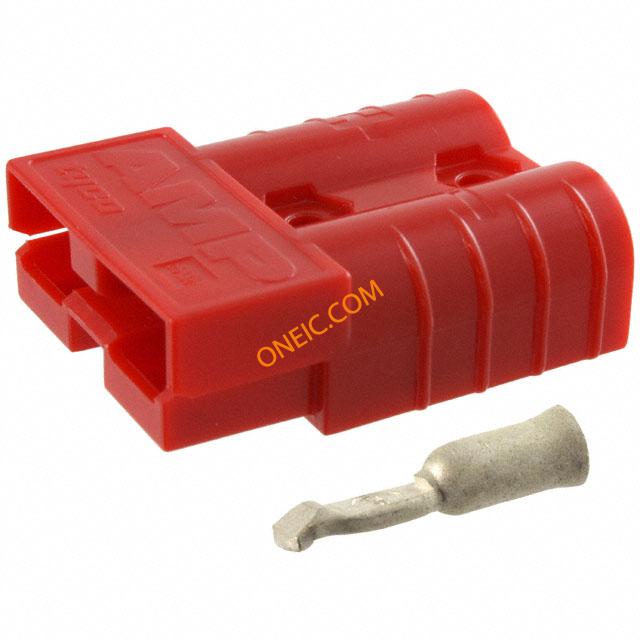

647893-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Kit Power Connectors CONN PLUG 2POS 10-12 AWG SILVER Heavy Duty Power Connectors SERIES 50 CONN 10-12 AWG RED Connector Accessories Kit Product Highlights:Connector Kit50 AMP SeriesConnector Type = 2-Pole Battery ConnectorWire Size (AWG/CM) = 10-12 AWGCurrent = 50 Amps.Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant CONNECTOR KIT, RED HOUSING, 2POS, 10-12 AWG CONTACT SRS 50 CONN KIT,RED,10-12AWG |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600V | 最大额定电流 | 50A |
机械参数
| 颜色 | Red | 重量 | 0 |
| 材料（通用） | Polycarbonate (PC) | 包装方式 | Bulk |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Assembly (Kit), Non Gendered |
| 接触镀层 | Silver | 紧固类型 | Spring Retention |
| 排数 | 1 | 连接器样式 | 2 Poles |
| 触头材料 | Copper | 壳体材料 | Polycarbonate (PC) |
| 触点数 | 2 | 接触件端接 | :Crimp |
| 位数 | 2 | 绝缘材料 - 材质 | Polycarbonate (PC) |
| 线规或范围 - AWG | 12-10 | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | Kit | 连接器性别 | :Plug, Receptacle |
| 系列 | :AMP Power 50 | 产品子类型 | Connectors |
| 射频系列/标准 | 647893 | ||
环境参数
| 工作温度 | -20C to 105C | ||
