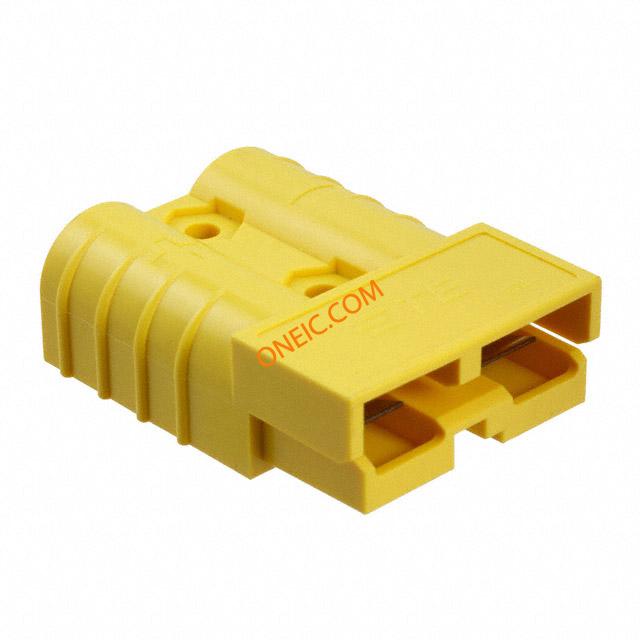

点击放大查看
647845-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Battery RCP 2 POS ST Cable Mount 1 Terminal 1 Port Bulk Power Connectors CONN HOUSING 2POS YELLOW Heavy Duty Power Connectors SERIES 50 HSG YELLOW Power Connectors Product Highlights:Housing50 AMP SeriesConnector Type = 2-Pole Battery ConnectorCurrent = 50 Amps.Housing Color = YellowSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant SERIES50HOUSING,YELLOW SERIES 50 HOUSING,YELLOW |
| 分类 |
商业参数
| 标准包装规格 | 175 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Bag | 工厂包装数量 | 175 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 50 A | ||
机械参数
| 颜色 | Yellow | 宽度 | 35.05 mm [ 1.38 in ] |
| 高度 | 15.88 mm [ .625 in ] | 长度 | 48.23 mm [ 1.9 in ] |
| 密封型 | 不密封 | 包装方式 | Bulk |
| 壳体颜色 | 黄色 | 电缆类型 | 分离式导线 |
| 导线线规 | 12 – 6 | 触头类型 | Non Gendered |
| 安装类型 | Cable Mount | 电缆直径 | 6088 – 27629 |
| 连接器类型 | Non Gendered | 接触镀层 | Silver |
| 紧固类型 | Spring Retention | 排数 | 1 |
| 插入力 | Female / Male | 触头材料 | Copper |
| 壳体材料 | Polycarbonate (PC) | 包装数量 | 175 |
| 面板安装类型 | 不带 | 端接样式 | Crimp |
| 触点数 | 2 | 堆叠方向 | Side to Side |
| 接触件端接 | Crimp | 绝缘直径 | 10 mm [ .394 in ] |
| 位数 | 2 | 外壳尺寸-插件 | 插头/插座 |
| 绝缘材料 - 材质 | Polycarbonate (PC) | 线规或范围 - AWG | 12-6 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Battery |
| 连接器性别 | RCP | 系列 | 50 |
| 产品子类型 | Connectors | 应用细节 | Power |
