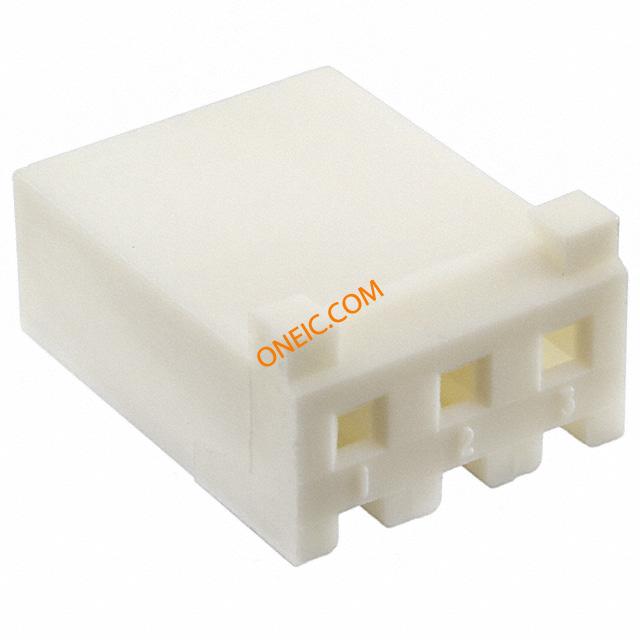

647402-3

点击放大查看

647402-3

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers 03P SL156 HSG W/RMP&TABS,OVSZ Headers & Wire Housings 3P HSG W/RMP&TABS OVSZ SL156 Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 3Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级已获认证
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR 7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

开关功能Locking Ramp供电电压250 VAC
连接器阻抗压接最大额定电流10/Contact A
最小供电电压250VAC

机械参数

颜色Natural深度16.76 mm
间距3.96 mm高度6.35 mm
包装方式Bulk遮蔽类型No
壳体颜色自然出线方向180°
导线线规18-24 AWG触头类型Female Socket
极化Polarizing Tab第二连接器With
外壳颜色White安装类型Straight
连接器类型Crimp紧固类型Locking Ramp
安装样式Wire排数1
外壳材料（壳体）盖连接器用途Receptacle
高度（英寸）6.35锁定特性Locking Ramp
壳体材料Nylon总长度12.75 mm
安装特性Without包装数量1
面板安装类型Without端接样式Crimp
第一触头极性Socket (Female)配接方向With
触点数3端接表面处理不带
接触件端接Crimp绝缘直径Large
位数3兼容外壳尺寸（如TM-700等）SL .156 端子
安装孔直径带有典型触点布局3.96 [0.156]
静电放电屏蔽不带

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列SL-156
产品特性Polarizing Key可密封否
制造商全称AMP产品子类型SL-156 Housings
应用细节Wire-to-Board

环境参数

工作温度-55C to 105C

文档与媒体

在线文档
647402-3

相关型号

644749-8

644749-8

te connectivity / amp

Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 TIN Headers & Wire Housings 156IDCW HDR 1X08P VRT T/H Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY STR SQ SN

¥1.7280
详情
641208-3

641208-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 3POS 30AU Headers & Wire Housings FRCTN LK HDR STR 3P Square post gold Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY FL ST 30AU

¥3.8160
详情
644753-3

644753-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN Headers & Wire Housings 3P HDR ASSY RN STR Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY RN STR F/L

¥0.7200
详情
644749-3

644749-3

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS .156 STR TIN Headers & Wire Housings 03P MTA156 HDR ASSY Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY STR SQ SN

¥0.7920
详情
3-641209-3

3-641209-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 GOLD Headers & Wire Housings HDR 3 POS VERT GOLD Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY FL ST LF

¥3.0182
详情
644759-3

644759-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 GOLD Headers & Wire Housings 3P MTA156 HEADER

¥3.7735
详情
3-644616-3

3-644616-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 TIN

详情
3-644757-3

3-644757-3

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 GOLD

详情
640385-3

640385-3

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 3POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 3P Square post tin Conn Unshrouded Header HDR 3 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY SQ R/A

¥0.7704
详情
3-644764-3

3-644764-3

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 GOLD

详情
3-644632-3

3-644632-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 GOLD

详情
3-644763-3

3-644763-3

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 GOLD Headers & Wire Housings 03P MTA156 HDR ASSY STR AU LF 03P MTA156 HDR ASSY STR AU LF 03P MTA156 HDR ASSY STR AU LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥4.5360
详情
3-644615-3

3-644615-3

te connectivity / amp

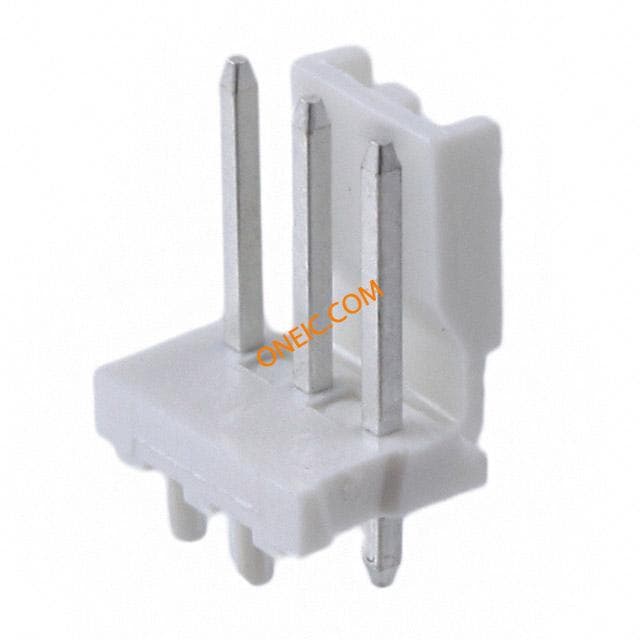

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 TIN Headers & Wire Housings 03P MTA156 POL HDR ASSY LF MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 POL HDR ASSY LF
