644807-2

制造商
TE Connectivity Ltd.
描述Conn IDC Connector M 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 2POS 18AWG MTA-156 Headers & Wire Housings 02P MTA156 PSTD CONN CE 18AWG 02P MTA156 PSTD CONN CE 18AWG 02P MTA156 PSTD CONN CE 18AWG Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格500产品类别Headers & Wire Housings
标准包装数量Bulk

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态Not ELV/RoHS compliant材料阻燃等级UL 94V-2

机械参数

颜色Orange间距3.96 mm
包装方式Bulk遮蔽类型Yes
导线类型Discrete or Ribbon Cable出线方向90°
导线线规18 AWG端接方式IDT
触头类型Male Pin第二连接器With
触点形状Square外壳颜色Orange
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Gold Over Nickel安装样式Wire
排数1连接器用途Plug
触头材料Copper Alloy壳体材料Nylon
安装特性Without面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Pin (Male)配接方向Without
触点数2位数2
典型触点布局3.96 [0.156]接触镀层厚度30µin (0.76µm)
线规或范围 - mm²0.8-0.9² [18]

产品信息

备注MTA-156 posted connectors (Closed End and Feed-Thru) will ONLY mate with MTA-15类型IDC Connector
连接器性别M系列MTA-156
产品特性Closed End制造商全称AMP
产品子类型MTA-156 Posted Wire-to-Wire Connectors连接类型Wire

文档与媒体

在线文档
644807-2?RQPN=644807-2

相关型号

3-640426-2

3-640426-2

te connectivity / amp

Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 18AWG MTA156 MTA 156 2W SKT 18AWG Headers & Wire Housings CLOSED W/O TABS 2P L.R. orange 18 AWG Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 18AWG, 2WAY Connector;Receptacle;2;IDCStandard;LockingRamp;90deg;Nylon;0.156in. Plug; wire-board; female; PIN:2; 3.96mm; IDC; for cable; MTA-156 Cable socket, straight 2P, 3-640426-2, TE Connectivity TE Connectivity MTA-156 系列 2路 3.96mm节距 直角 母 IDC 连接器 , 电缆安装 02P MTA156 CONN ASSY 18AWG ORA

¥0.7004
详情
暂无图片

3-641173-2

te connectivity / amp

Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount CONN RCPT 2POS 18AWG MTA-156

详情
3-640429-2

3-640429-2

te connectivity / amp

Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 24AWG MTA156 2 way cable mount MTA socket,24 awg Headers & Wire Housings CLOSED W/O TABS 2P L.R. NATURAL 24 AWG Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 24AWG, 2WAY Connector;Receptacle;2;IDCStandard;LockingRamp;90deg;Nylon;0.156in. Cable socket, straight 2P, 3-640429-2, TE Connectivity TE Connectivity MTA-156 系列 2路 3.96mm节距 直角 母 IDC 连接器 , 电缆安装 02P MTA156 CONN ASSY 24AWG WHT

¥0.7412
详情
3-641148-2

3-641148-2

te connectivity / amp

Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 18AWG MTA-156 Headers & Wire Housings 02P MTA156 ASY 18AWG ORA LF 02P MTA156 ASSY 18AWG ORA LF 02P MTA156 ASSY 18AWG ORA LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.4480
详情

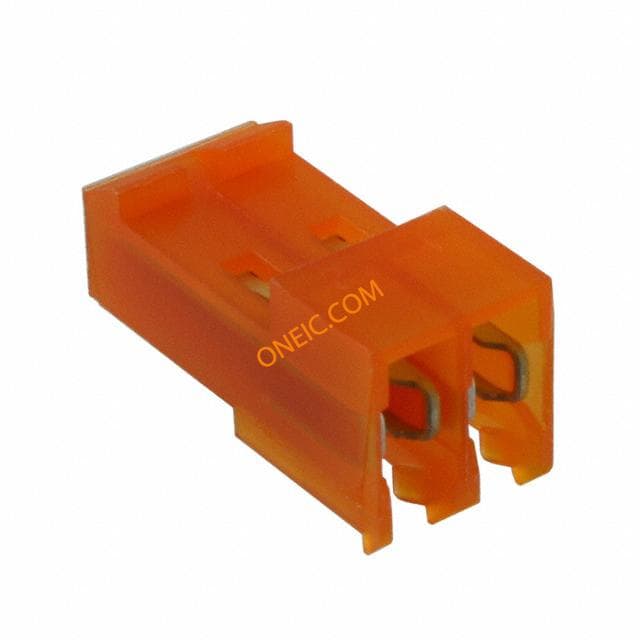

3-641217-2

3-641217-2

te connectivity / amp

Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 18AWG MTA-156 Headers & Wire Housings 02P MTA156 CONN ASSY 18AWG ORA 02P MTA156 CONN ASSY 18AWG ORA 02P MTA156 CONN ASSY 18AWG ORA Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.5605
详情

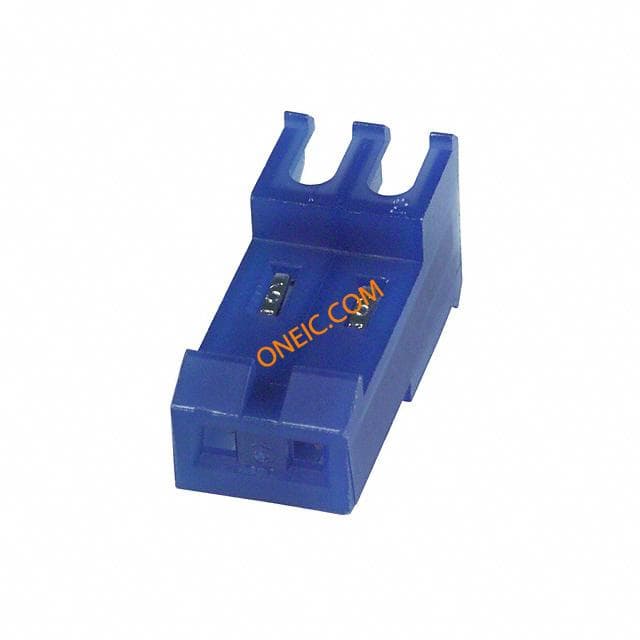

640595-2
