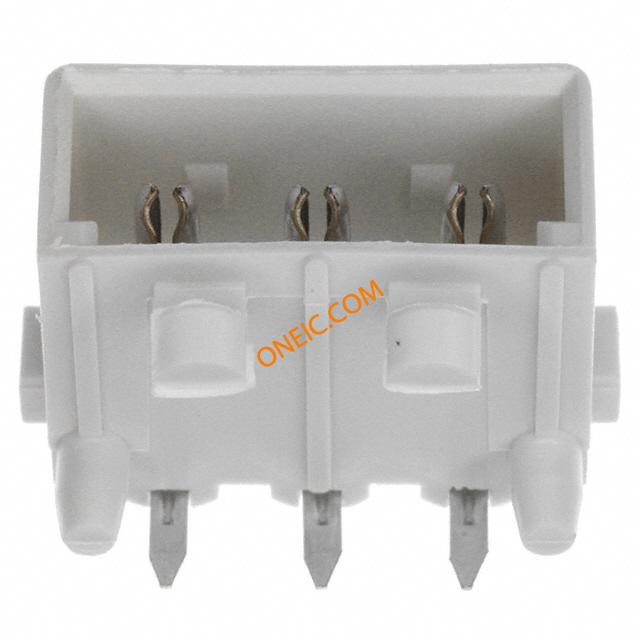

643488-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 3 POS 5.08mm Solder RA Thru-Hole 3 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER PIN RT/ANG 3POS TIN Power to the Board 3P R/A HDR ASSY Conn Power HDR 3 POS 5.08mm Solder RA Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 3POS, 4.95MM HEADERASSEMBLY,SOFTSHELL,MATE-N-LOK,3POSITION,PIN,NYLON,NATURAL 03P CMNL HDR ASSY R/A |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 13 A |
| 最小供电电压 | 250VDC/250VAC | ||
机械参数
| 颜色 | Natural | 间距 | 5.08 mm |
| 高度 | 8.76 mm | 重量 | 0.00136 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 总长度 | 20.32 mm | 端接样式 | Solder Pin |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 3 |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | :Commercial MATE-N-LOK | 产品特性 | Board Guide, Board Lock |
| 产品子类型 | Headers | 端口数 | 1 Port |
| 加载位置数 | All | ||
