643413-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN Power to the Board 3P SOCKET .25 CTR Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Socket;3Pos;UnivMATE-N-LOK;Vertical;PositLock;Natural 03P UMNL HDR ASSY SCKT POL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | 最小供电电压 | 600VDC/600VAC |
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 宽度 | 20.32 | 高度 | 14.73 mm |
| 长度 | 13.97 | 密封型 | Not Sealed |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 连接器类型 | Header |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 引脚数 | 3 |
| 排数 | 1 | 封装形式 | Receptacle |
| 高度（英寸） | 7.62 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 包装数量 | 100 |
| 面板安装类型 | 通孔 - 焊接 | 端接样式 | 插座 |
| 第一触头极性 | Socket (Female) | 触点数 | 3 |
| 位数 | 3 | 兼容外壳尺寸（如TM-700等） | 与插头护套插接（使用插针端子） |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 预镀锡 |
| 典型触点布局 | 直插式 | 端子柱长度 | 3.81 mm [ .149 in ] |
| 静电放电屏蔽 | 不带 | 每排/每行位置数 | All |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | Universal MATE-N-LOK, AMP | 产品特性 | Board Guide |
| 主要用途 | Board Guide | 产品子类型 | Headers |
| 端口数 | 1 Port | 输出配置 | Through Hole |
| 应用细节 | Power | 装配配置 | Without |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55C to 85C |
| 封装热阻 | 3.18 mm [ .125 in ] | ||
相关型号
1-480700-0
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS 94V-2 UNI-MATE 3 way free plug housing Pin & Socket Connectors PLUG HOUSE 3 POS Conn Housing PL 3 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, SINGLE ROW, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Plug;Nylon;Natural;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:3 Crimp housing Pitch6.35 mm Poles 3 Single row / Free hanging/cable mount MATE-N-LOK Universal, 1-480700-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 3 路 直 公 面板安装 压接连接器外壳 03P UMNL PLUG HSG NATL
350848-3
te connectivity / amp
Conn Power SKT 3 POS 6.35mm ST Cable Mount 3 Terminal 1 Port Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS UNIV-MATE-N-LOK Pin & Socket Connectors 3P PLUG TEST ASSY 94V0 .250" Centerline, 600 V, 19 - 36 A max Product Highlights:Test ConnectorUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PLUG TEST ASSY 94VO
794900-1
te connectivity / amp
Conn Housing RCP 3 POS Crimp ST Panel Mount Pin & Socket Connectors 03P UMNL HI TEMP CAP HSG CONN CAP HSG 3POS UMNL HI TEMP Conn;CapHsg;3Pos;UnivMATE-N-LOK;HITEMP 03P UMNL HI TEMP CAP HSG
1-480700-2
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 3POS 94V-2 RED Power to the Board PLUG HOUSE 3 POS RED UL94V-2 Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 03P UMNL PLUG HSG RED
2-480700-0
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS FREE HANG UNM-N-L Power to the Board 03P PLUG HSG F/H Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOK Product LineIn-Line Contact Layout6.35 mm Centerline3 PositionsSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PLUG HSG

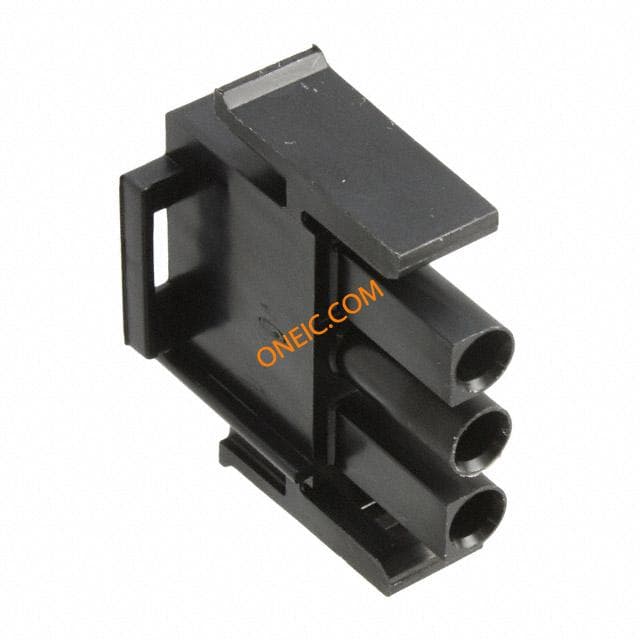

794901-1
