点击放大查看

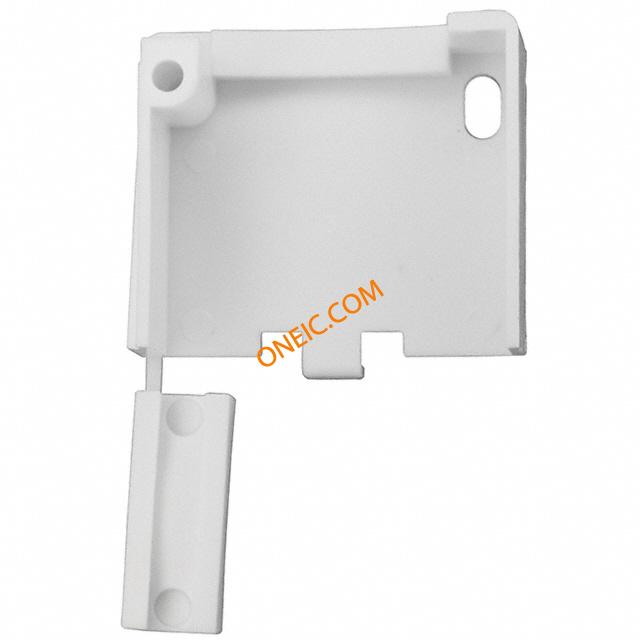

640718-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | 15P UMNL STR/REL Connector Accessories Strain Relief 15 POS Nylon White Soft Shell - Accessories CONN STRAIN RELIEF ENCLOSE 15POS Mate-N-Lok cable-clamp housing 15W Pin & Socket Connectors STRN RLF 15P MATRIX Connector Accessories Strain Relief 15 POS Nylon White Product Highlights:Strain ReliefUniversal MATE-N-LOK IINylon Housing MaterialColor = WhiteNumber of Circuits = 15Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, 15WAY U-M-N-LACCESSORIES,15PUMNLSTR/REL Strain relief shell, 640718-1, TE Connectivity TE Connectivity 640718 15路 应力释放支架, 使用于 通用 MATE-N-LOK 连接器 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 连接器类型 - 电压输入 | Universal MATE-N-LOK II | ||
机械参数
| 颜色 | White | 宽度 | :39mm |
| 长度 | :33mm | 重量 | 0.001 |
| 材料（通用） | :Nylon | 线径 | 5.08 â 21.59 [0.200 â 0.850] |
| 供货尺寸 | Yes | 壳体材料 | Nylon |
| 主要材料 | Interconnect | 连接器颜色 | :White |
| 触点数 | 15 | 位数 | 15 |
| 绝缘材料 - 材质 | :Nylon (Polyamide) | 典型触点布局 | Matrix |
| 外径-未扩张 | :21.59mm | ||
产品信息
| 备注 | Strain relief part number represents one half of a strain relief. Two of a part | 类型 | Strain Relief |
| 样式 | :#6 x 16 mm Lg Type B Pan head sheet metal screw | 系列 | Universal Mate-N-Lok |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Strain Relief |
| 附件类型 | Strain Relief | 电路数 | 15 |
| 射频系列/标准 | 640718 | 适用产品/相关产品 | Universal MATE-N-LOK II Series |
文档与媒体
相关型号
770058-1
te connectivity / amp
Conn Housing RCP 15 POS 6.35mm ST Panel Mount Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 15POS UNIV-MNL II Pin & Socket Connectors 15P UMNL II CAP REAR 94VO 15P UMNL II CAP REAR 94VO
770023-1
te connectivity / amp
Conn Housing PL 15 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS UMNL-II (2PC) Housing,plug,kit,Mate-n-lokII,15Way Pin & Socket Connectors 15 MATRIX PLUG Conn Housing PL 15 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOKII;15;Plug;Nylon;White;31A Crimp housing Pitch6.35 mm Poles 15 MATE-N-LOK Universal, 770023-1, TE Connectivity TE Connectivity Universal MATE-N-LOK II 系列 3 行 6.35mm 节距 15 路 直 公 压接连接器外壳 15P UMNLII IN-LNE PLUG HSG KIT
770044-1
te connectivity / amp
Conn Housing PL 15 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG REAR 15POS UNIV-MNL II Pin & Socket Connectors 15P UMNL II PLUG REAR 94VO Conn Housing PL 15 POS 6.35mm ST Rear Piece Product Highlights:ConnectorUniversal MATE-N-LOK II Product LineHousingConnector Style = PlugContact Type = Pin or SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 15 Position 6.35mm 19A 600V Free Hanging Mate-N-Lok Plug 15P UMNL II PLUG REAR 94VO

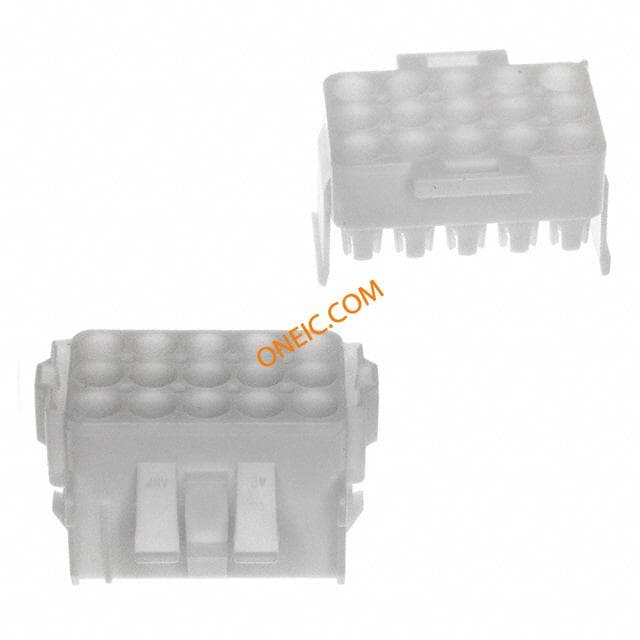

770030-1
