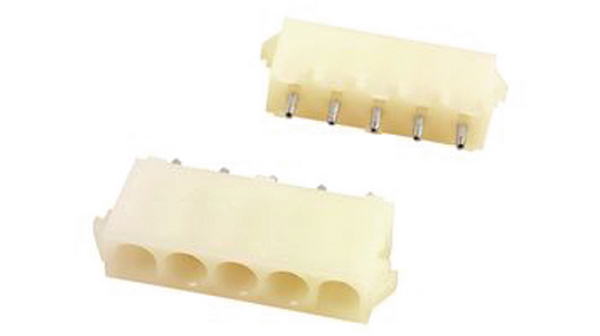

点击放大查看

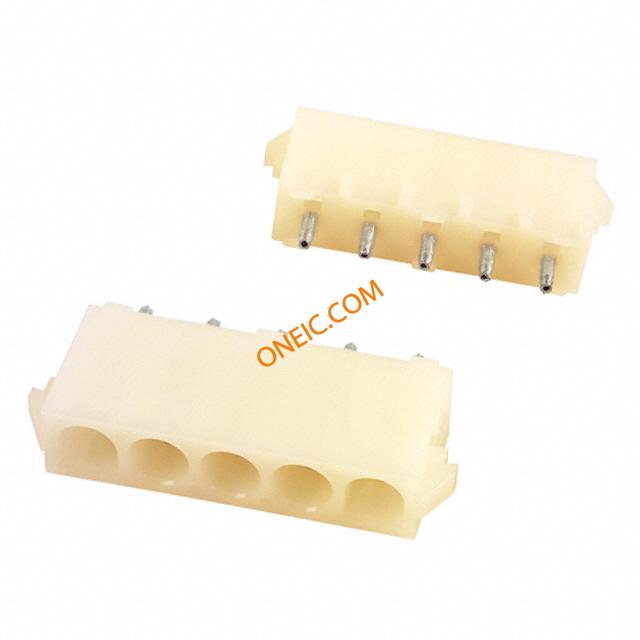

640467-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN Power to the Board 05P UMNL HDR ASSY Conn Power SKT 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER, MATE-N-LOK, 5WAY UNIVM-N-LHEADER,05PUMNLHDRASSY Socket header Pitch6.35 mm Poles 5 MATE-N-LOK Universal, 640467-1, TE Connectivity 05P UMNL HDR ASSY |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 高度 | 14.73 mm | 重量 | 0.02 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Female Socket | 安装类型 | Through Hole |
| 连接器类型 | Header | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 主要材料 | InterconnectSystem |
| 第一触头极性 | Socket (Female) | 触点数 | 5 |
| 接触件端接 | :Through Hole Vertical | 位数 | 5 |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | :Universal MATE-N-LOK | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Headers | 端口数 | 1 Port |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 85C | 结工作温度 | 85C |
