640453-5

点击放大查看

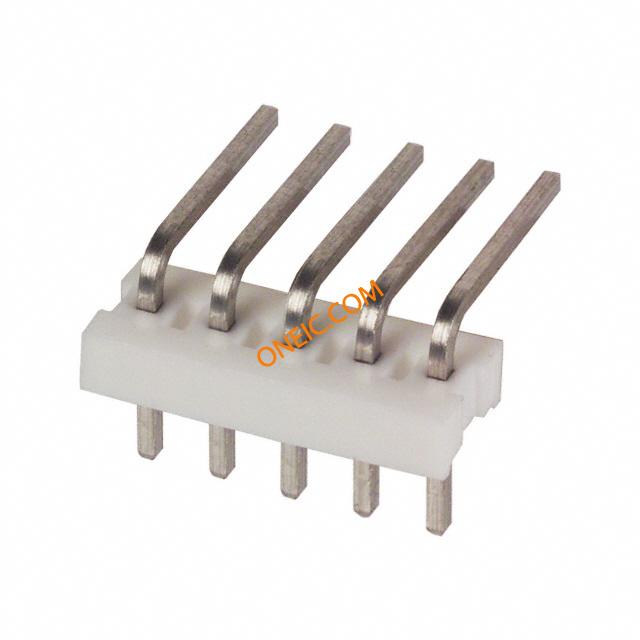

640453-5

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .100 TIN Headers & Wire Housings FLAT HEADER 5P Right Angle Post tin Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.1", 5WAY Header;MTA-100;5;250VAC;Polyester;Tin;CopperAlloy;0.100in.;Tin;AMP 05P MTA100 HDR ASSY SQ R/A
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量200

合规参数

RoHSLead free / RoHS Compliant标准RoHSCompliant,ELVCompliant,UL94V-0
海关税号85369010无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
认证机构CSA,ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V极数:5
工作电压:250V接触电阻6 mohm
额定交流电压250最大额定电流5 A
最小供电电压250VAC

机械参数

颜色Natural深度12.57 mm
间距2.54 mm高度4.11 mm
重量0.047包装方式Bulk
端口尺寸0.025in.遮蔽类型No
导线线规28-22端接方式Solder
触头类型Male Pin引脚间距:2.54mm
引脚长度（针脚）0.14"第二连接器Without
触点形状Square外壳颜色White
安装类型Right Angle行程角度Right
连接器类型Header, Unshrouded接触镀层Tin Over Nickel
安装样式Through Hole排数1
连接器用途Header触头材料Copper Alloy
壳体材料Polyester总长度12.7 mm
安装特性Without面板安装类型Without
主要材料InterconnectSystem尺寸/外形0.64 [.025]
插针孔直径0.1"端接样式Through Hole
第一触头极性Pin (Male)配接方向Without
触点数5接触件端接:Through Hole Right Angle
绝缘直径0.06"(SingleWire),0.05"(MassTerminationWires)位数5
后壳中断功能Without中心触点镀层工艺0.100in.
柱体长度（配合）0.14in.安装孔直径0.04"
典型触点布局2.54 [0.100]接触长度 - 配合0.295" (7.49mm)
触点材料 - 柱Copper Alloy端子柱长度3.56 [0.140]
恢复后小径No

产品信息

类型Unshrouded Header连接器性别HDR
系列MTA-100产品特性IDC,Pinstrip
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None

环境参数

工作温度-55C to 105C

文档与媒体

PDF 文档
4140.pdf
在线文档
640453-5
