640251-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECPT 8POS W/O RAMP SL-156 Headers & Wire Housings 08P SL156 HSG W/O LC Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 8Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;8;Crimp;180deg;Nylon;SL-156Housings;0.156in. SL-156 8 Position Crimp Free Hanging Receptacle Housing 08P SL156 HSG W/O LCK RAMP |
| 分类 |
商业参数
| 其他名称 | A19976 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | UL94V-0FlammabilityRating,RoHSCompliant,ELVCompliant |
| UL等级 | 已获认证 | 无铅定义 | Not relevant for lead free process |
| UL档案号 | E28476 | 认证机构 | CSA,UL |
| CSA档案号 | LR 7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 开关功能 | Unlatched | 供电电压 | 250 VAC |
| 连接器阻抗 | 压接 | 最大额定电流 | 6.5 |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 壳体颜色 | 自然 | 出线方向 | 180° |
| 导线线规 | 18-24 AWG | 排间距 | 0.156in. |
| 端接方式 | Crimp | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 第二连接器 | Without |
| 外壳颜色 | White | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Crimp |
| 安装样式 | Free Hanging | 排数 | 1 |
| 外壳材料（壳体） | 标准 | 连接器用途 | Receptacle |
| 高度（英寸） | 6.35 | 壳体材料 | Nylon |
| 总长度 | 1.246" | 安装特性 | Without |
| 包装数量 | 1 | 面板安装类型 | Without |
| 主要材料 | WiretoBoard | 导线端接方式 | Crimp |
| 插针孔直径 | 0.156" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 8 | 端接表面处理 | 不带 |
| 接触件端接 | Crimp | 绝缘直径 | Standard |
| 位数 | 8 | 兼容外壳尺寸（如TM-700等） | SL .156 端子 |
| 安装孔直径 | 不带 | 典型触点布局 | 3.96 [0.156] |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | SL-156 |
| 可密封 | 否 | 制造商全称 | AMP |
| 产品子类型 | SL-156 Housings | 输出配置 | Free Hanging (In-Line) |
| 应用细节 | Wire-to-Board | ||
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
相关型号
640445-8
te connectivity / amp

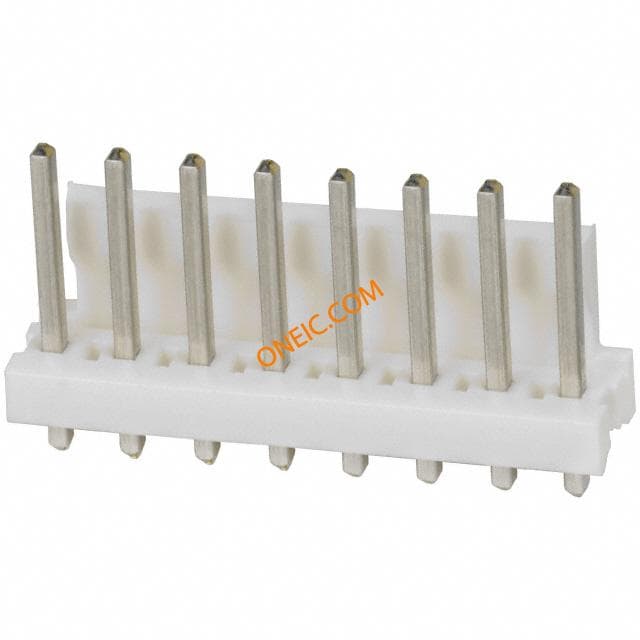

Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 8P Square post tin Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 8WAY Connector,MTA-156;Male;8;CopperAlloy;7;600;0.156in.;Polyester;White Pin header straight 8P, 640445-8, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 8路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 08P MTA156 HDR ASSY FL/STR SN
641207-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 8POS R/A .156 30GOLD Headers & Wire Housings 08P MTA156 HDR ASSY FL RA 30AU 08P MTA156 HDR ASSY FL RA 30AU 08P MTA156 HDR ASSY FL RA 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640389-8
te connectivity / amp

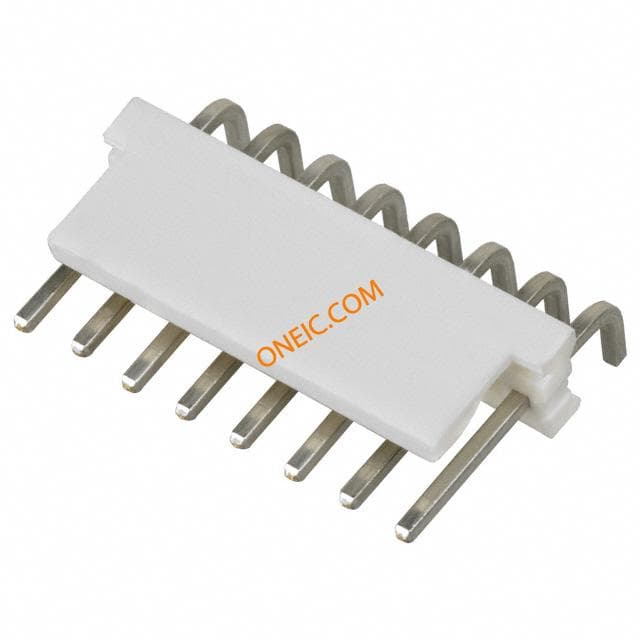

Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 8P Square post tin Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector,MTA-156;Male;8;CopperAlloy;7;600;0.156in.;Polyester;White 08P MTA156 HDR ASSY SQ R/A F/L
640383-8
te connectivity / amp

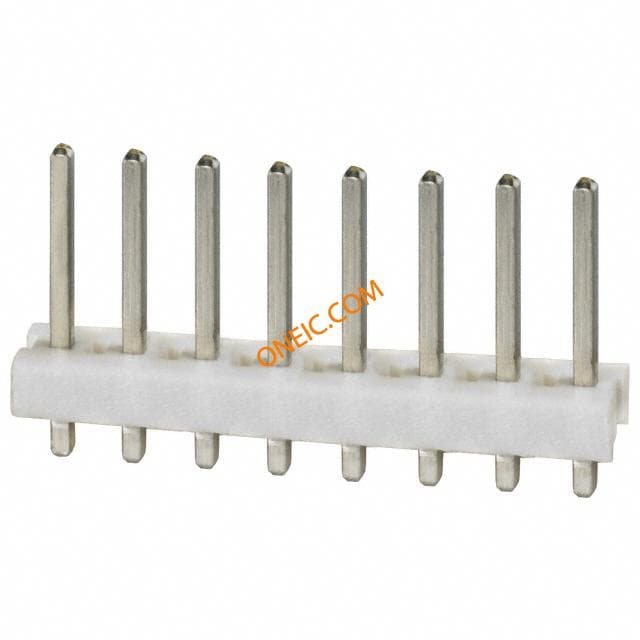

Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 8P Square post tin Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY STR SQ SN
640384-8
te connectivity / amp

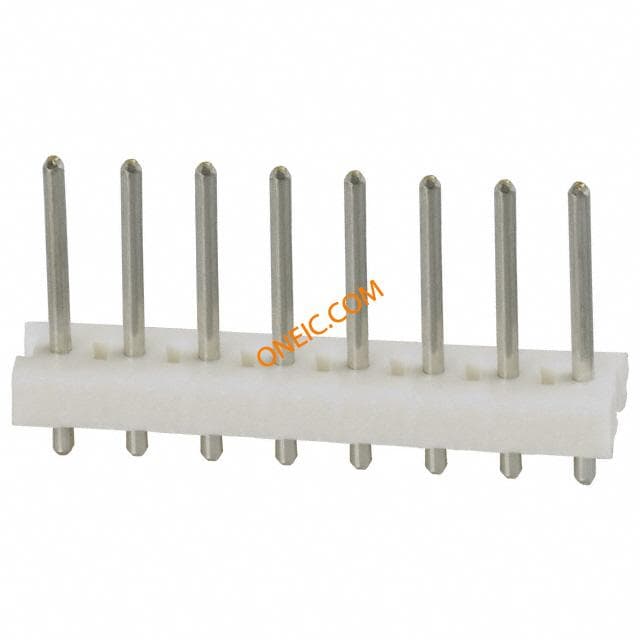

Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 8P Round post tin Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector8 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY STR RND SN
644752-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .156 TIN Headers & Wire Housings 08P MTA156 HDR ASSY Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY SQ STR F/L
641208-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 8POS 30AU Headers & Wire Housings FRCTN LK HDR STR 8P Square post gold Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY FL ST 30AU
3-641210-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 8POS 30AU Headers & Wire Housings FRCTN LK HDR RA 8P Square post gold MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR FLRA FB 30AU LF
640388-8
te connectivity / amp

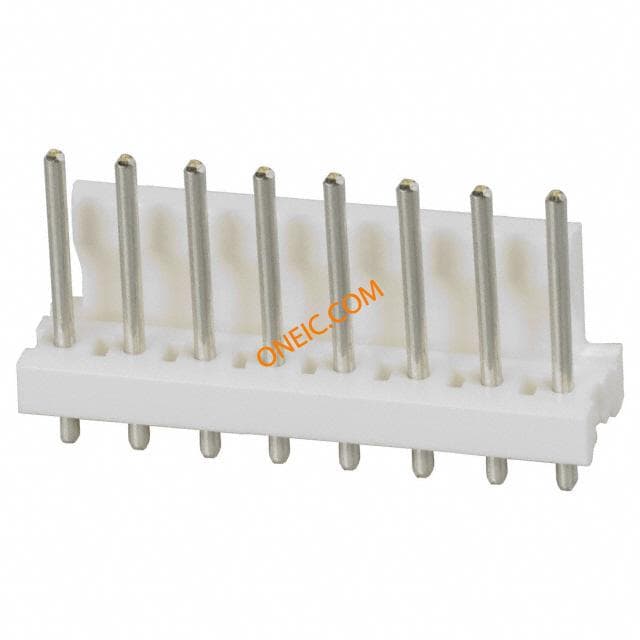

Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .156 TIN Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, PLUG, 8WAY Connector,MTA-156;Male;8;CopperAlloy;7;600;0.156in.;Polyester;White 08P MTA156 HDR ASSY RN STR F/L
640387-8
te connectivity / amp

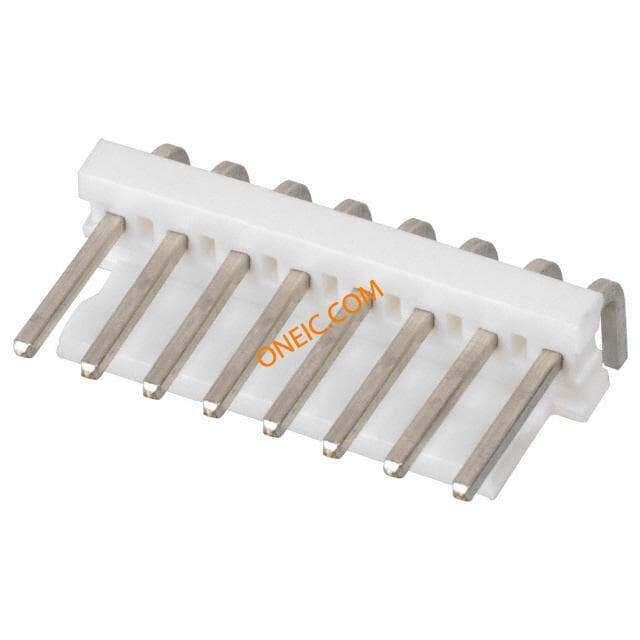

Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .156 TIN Headers & Wire Housings POLARIZED HDR RA 8P Square post tin Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY SQ R/A R/B
644751-8
te connectivity / amp
Conn Unshrouded Header HDR 8 POS 3.96mm Solder RA Thru-Hole Headers & Wire Housings 08P HDR ASSY R/A MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .156 TIN 08P MTA156 HDR ASSY R/A 08P MTA156 HDR ASSY R/A Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644753-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .156 TIN Headers & Wire Housings 08P MTA156 HDR ASSY Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY RN STR F/L
644766-8
te connectivity / amp

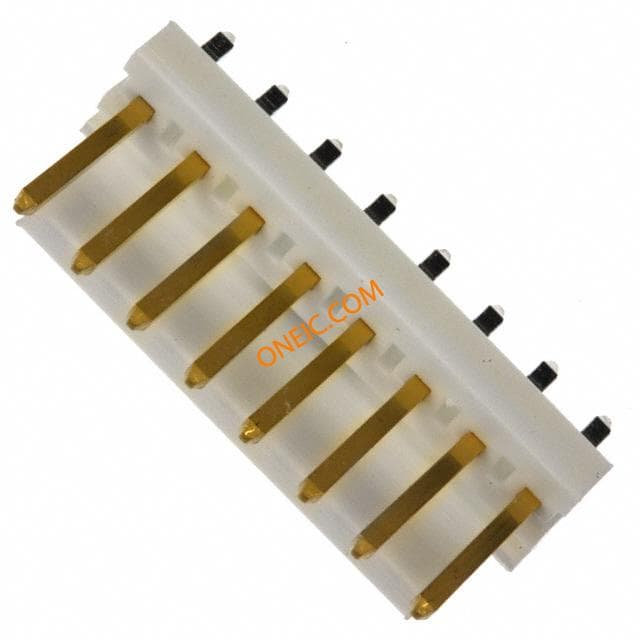

Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 8POS VERT .156 GOLD 08P MTA156 HDR ASSY STR SQ AU 08P MTA156 HDR ASSY STR SQ AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
