点击放大查看

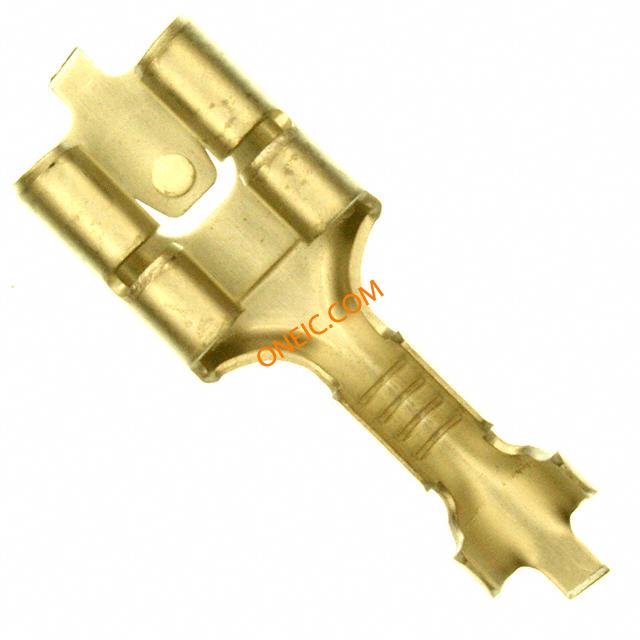

63609-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 19.17mm 7.62mm Tin Strip Terminals RCPT 250 FAST 22-18 FASTON Uninsulated Receptacles & Housings CONN RCPT FAST 18-22AWG .250 Quick Disconnect Terminal 18-22AWG RCP 19.17mm 7.62mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TERMINAL, FEMALE DISCONNECT 0.25IN CRIMP FASTON 250 RECEPTACLE 22-18 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A29940TR |
| 产品类别 | Terminals | 标准包装数量 | 10,000 |
| 工厂包装数量 | 10000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 颜色 | Not Required | 深度 | 7.62 mm |
| 表面处理 | Tin | 重量 | 0 |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.41 [0.016] |
| 电缆类型 | Stranded | 绝缘类型 | Not Insulated |
| 插片长度 | 0.305" (7.75mm) | 导线线规 | 22-18 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 7.62 mm x 7.75 mm |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | :Female Disconnect | 接触镀层 | Tin |
| 壳体镀层 | Tin | 线束直径 | 0.9 mm |
| 连接器样式 | Straight | 箔压接区域 | F-Crimp |
| 插入力 | Low | 触头材料 | Brass |
| 绝缘颜色 | :Uninsulated | 总长度 | Premier |
| 包装数量 | Strip | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 绝缘直径 | 2.29-3.30 [.090-.130] |
| 线规或范围 - AWG | :22AWG | 线规或范围 - mm² | 0.30-0.90² [22-18] |
| 第二连接器安装特性 | No | ||
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 250 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
