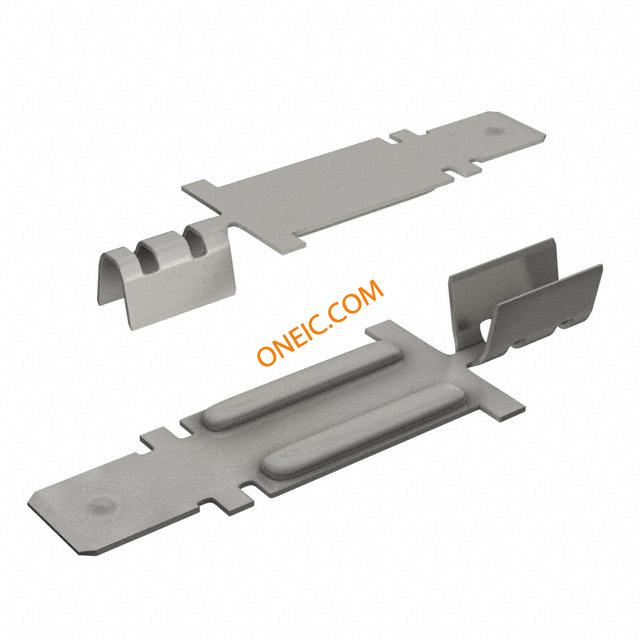

63301-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 15-22AWG Tab 38.1mm 9.53mm Nickel Strip Terminals .25 HITEMP TAB-20-15 Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB FASTON 15-22 AWG .250 Tab terminal,high temperature,FASTON 250 Quick Disconnect Terminal 15-22AWG Tab 38.1mm 9.53mm Nickel Strip Product Highlights:TabTab Type = Wire CrimpUninsulatedTab Fit = 6.35 x 0.81 mmSteel MaterialSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, FASTON250HITEMPTAB20-15032NPCRS TE Connectivity FASTON .250 系列 压接接头端子, 6.35 x 0.81mm, 镀镍触芯 NI-CHROME WIRE 250 CRIMP TAB 22-15 NPCRS |
| 分类 |
商业参数
| 产品 | Tab Terminals | 产品类别 | Terminals |
| 标准包装数量 | 6,000 | 工厂包装数量 | 3000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | ||
机械参数
| 表面处理 | Nickel | 长度 | .032, 1.5 |
| 材料（通用） | Steel | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | Heating Element Wire |
| 公共引脚 | Dimple | 绝缘类型 | Insulated |
| 导线线规 | 18-14 | 端接方式 | Crimp |
| 安装类型 | Straight | 螺柱/焊片尺寸 | 6.35 mm x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 1.45mm² | 电缆材料 | Stranded |
| 连接器类型 | Yes | 接触镀层 | Nickel |
| 连接器用途 | Wire & Cable | 插入件材料 | 钢 |
| 插入力 | 普通 | 触头材料 | Steel |
| 总长度 | 38.1mm | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Without |
| 端接样式 | Wire | 接触件尾部长度 | 0.81mm |
| 绝缘材料 - 类型 | No | 总厚度 | .81 mm [ .032 in ] |
| 焊盘布局尺寸 | 6.35 x 0.81mm | 安装孔直径 | Without |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 15AWG | 线规或范围 - mm² | 0.30-1.60² [22-15] |
| 触点镀层厚度 - 柱 | 6.35mm | ||
产品信息
| 备注 | H = 凹点 | 连接器性别 | Female |
| 系列 | 633 | 产品特性 | High Temperature |
| 产品子类型 | Tab | 其他规格 | Wire Crimp |
