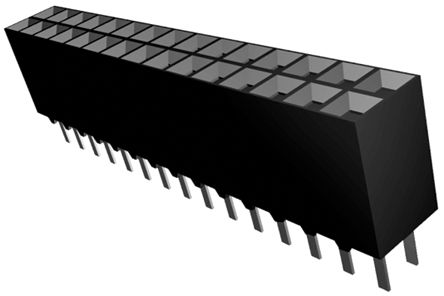

点击放大查看

6-534206-5

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 30 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 30POS .100 VERT DUAL Headers & Wire Housings REC 2X15P VRT T/H Conn Socket Strip SKT 30 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 30Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, VERTIIDRCERECASY,30MODIIVRTDRCE100/115 TE Connectivity AMPMODU Mod II 系列 2行 30路直 2.54mm节距通孔印刷电路板插座, 板对板 30 MODII VRT DR CE 100/115
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	15

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
MIL-C-55032	No	材料阻燃等级	UL 94V-0

电气参数

额定电压	333 V 交流	接触电阻	12 mohm
输入电阻	5000	额定交流电压	333
连接器阻抗	Closed Entry, Top	最大额定电流	2 A
初始电阻（最小）	12

机械参数

颜色	Black	深度	5.03 mm
间距	2.54 mm	高度	8.12 mm
包装方式	Tube	壳体颜色	黑色
引脚样式	直角	轴径尺寸	不带
方向	直	排间距	0.100" (2.54mm)
端接方式	Solder	触点形式	Female Socket
触头类型	Female Socket	引脚间距	0.100" (2.54mm)
外壳颜色	Black	安装类型	Through Hole
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	Through Hole	排数	2
插入件材料	磷青铜	操作力	Standard
触头材料	Phosphor Bronze	壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)
总长度	38.1 mm	包装数量	15
面板安装类型	通孔 - 焊接	主要材料	InterconnectSystem
端接排数	焊接	端接样式	Through Hole
触点数	30	接触件尾部长度	2.92
位数	30	兼容外壳尺寸（如TM-700等）	与接头配合
典型触点布局	Short Point	端子柱长度	2.92 mm [ .115 in ]
接触镀层厚度	30µin (0.76µm)	每排/每行位置数	All

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。	类型	Socket Strip
连接器性别	SKT	系列	AMPMODU MOD II
可密封	否	可堆叠	Yes
制造商全称	AMPMODU/ModIiSeries	产品子类型	Receptacles / Sockets - PCB
输出配置	Through Hole	装配配置	Board Standoff
加载位置数	All

环境参数

温度范围	否	工作温度	- 65 C to + 105 C
封装热阻	1.57 mm [ .062 in ]
