点击放大查看

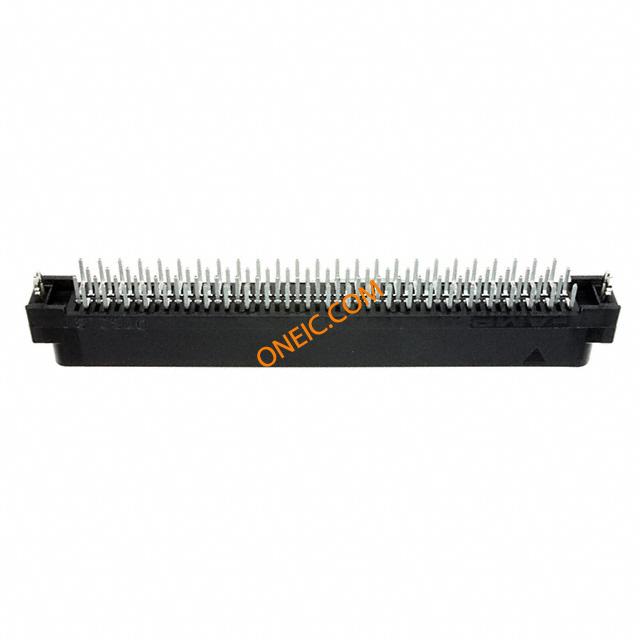

6-5175473-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI PL 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port Board to Board & Mezzanine Connectors VERT PLUG 100P Series I w/locks 1.27 [.050] Series I, HD, FH and J Connectors .050CL,CHAMP,VERT PLUG,100 POS 1.27 [.050] Series I, HD, FH and J Connectors Product Highlights:ConnectorHousing Gender = Plug100 Positions1.27 mm CenterlineStandard Profile |
| 分类 |
商业参数
| 标准包装规格 | 60 | 产品类别 | Board to Board & Mezzanine Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 60 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 开关功能 | Without | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 密封型 | Without | 包装方式 | Tray |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 连接器类型 | High Density (HD) | 接触镀层 | Gold (30) |
| 尖端材料（笔尖） | Brass | 安装样式 | Thru Hole |
| 排数 | 2 | 壳体镀层 | Tin over Nickel |
| 连接器样式 | Center Strip Contacts | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 1.27 [0.050] | 位数 | 100 |
| 端子柱长度 | 3.10 [0.122] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | SCSI | 连接器性别 | PL |
| 产品特性 | Board Lock | 制造商全称 | AMP |
| 产品子类型 | Connector | 适用产品/相关产品 | Board To Board Applications |
环境参数
| 温度额定值 | Standard | ||
