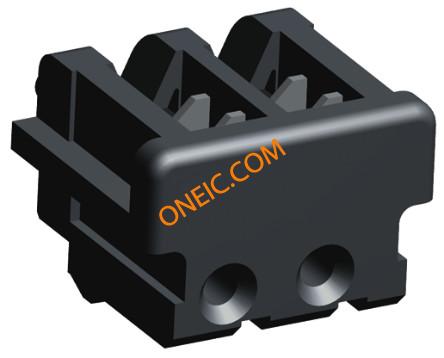

点击放大查看
6-173977-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 2 POS 2mm IDT ST Cable Mount Bag/Box 2mm AMP CT CT CONN MT REC ASSY 2P BLACK Receptacle assembly, MT,2mm,IDC,2 way,CT Headers & Wire Housings CT CONN MT REC ASSY 2P BLACK 2mm AMP CT Product Highlights:ConnectorConnector Type = Blindmate, MT (Mass Termination)Mating Type = ReceptacleNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, |
| 分类 |
商业参数
| 商标名 | Common Termination | 标准包装规格 | 1,000 |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 连接器阻抗 | 刺破式压接 (IDC) | ||
机械参数
| 颜色 | Black | 深度 | 4.5mm |
| 间距 | 2 mm | 宽度 | 5.1mm |
| 长度 | 6mm | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 导线线规 | 26-28 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Blindmate, MT (Mass Termination) | 接触镀层 | Pre-Tin |
| 排数 | 1 | 连接器用途 | Receptacle |
| 触头材料 | Phosphor Bronze | 壳体材料 | PBT - GF |
| 面板安装类型 | Without | 电缆端接方式 | IDC |
| 触点数 | 2 | 绝缘直径 | 0.85 â 1.05 [0.034 â 0.041] |
| 位数 | 2 | 安装孔直径 | 带有 |
| 中心触点材料 | 2.00 [0.079] | 线规或范围 - mm² | 0.08-0.15² [28-26] |
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | 6-173977 | 产品特性 | Closed End |
| 产品子类型 | Connector | 连接类型 | Wire |
| 适用产品/相关产品 | Centerline Wire-to-Board, Centerline Wire-to-Wire Connector | ||
