6-1437719-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shielded Circular Subminiature SKT 5 POS Solder RA Thru-Hole 5 Terminal 1 Port Shielded Circular Subminiature Connectors (TRIAD 01) CONN RCPT SKT 5POS SLD PNL R/A 5 Pole Male Right Angle Through Hole Industrial & Automation Circular Connector with Female Contacts Standard Circular Connector SOCKET HDR 5P 3A PCB Conn Shielded Circular Subminiature SKT 5 POS Solder RA Thru-Hole 5 Terminal 1 Port Product Highlights:Header5 ContactsSocketContact Current Rating = 3 Amps.Wire Size = 0.25 mm² [AWG]Search Keywords:soft shell, input/output, IP65, DIN 40050, sealed, box to box, TE Connectivity TRIAD™ 01 系列 5路 通孔 直角 连接器 插座 T01-0560-S05-FEMALE REC PANEL-PCB MNT RA |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 60VAC | 供电电压 | 60 |
| 连接器阻抗 | 超小型 | 最大额定电流 | 3A |
机械参数
| 密封型 | 否 | 包装方式 | Tray |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Female Sockets | 紧固类型 | Threaded |
| 壳体材料 | CuZn | 总长度 | 19.2 |
| 包装数量 | 25 | 尺寸/外形 | .25 mm² [ 24 AWG ] |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 第一触头极性 | Female | 触点数 | 5 |
| 位数 | 5 | 外壳材料及表面处理 | Brass, Tribor Plated |
产品信息
| 类型 | Shielded Circular Subminiature | 连接器性别 | HDR |
| 系列 | Super Seal | 产品特性 | Board Lock, Shielded |
| 可密封 | 是 | CAD图纸 | 3D CAD Model |
| 主要用途 | Board Lock, Shielded | 产品子类型 | Connectors |
| 输出配置 | Panel Mount, Bulkhead; Through Hole, Right Angle | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号

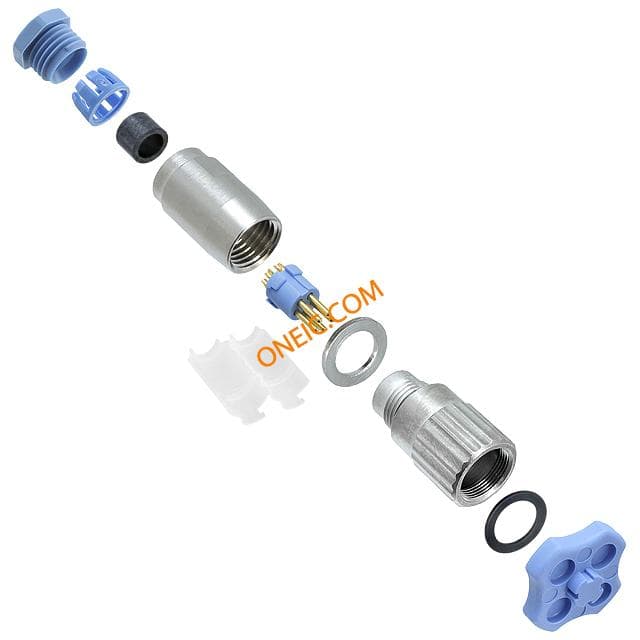

2-1437719-1
