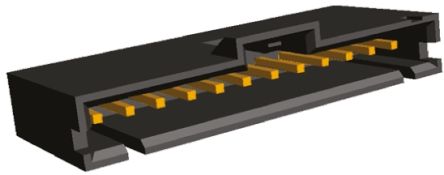

点击放大查看
6-104363-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 12POS 15AU Header 12 way pin 2.54mm IDC AmpModu Headers & Wire Housings 12MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorConnector Type = Header - Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mm12 PositionsSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR, HEADER, 2.54MM, 12WAY TE Connectivity AMPMODU MTE 系列 2.54mm节距 12路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 12 MTE HDR SRST LATCH .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 16 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU MTE Series | 额定电压 | 250 V ac |
| 开关功能 | Latched | 接触电阻 | 15 mohm |
| 最大额定电流 | 3A | 绝缘电阻 | 5000 MOhms |
机械参数
| 颜色 | Black | 深度 | 6.65 mm |
| 间距 | 2.54 mm | 高度 | 13.59 mm |
| 重量 | 0.02 | 包装方式 | Tube |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Glass Fibre Reinforced Thermoplastic | 总长度 | 33.02 mm |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 12 | 接触件端接 | :Through Hole Vertical |
| 位数 | 12 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | MTE | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | +105°C | ||
