点击放大查看

6-103976-1

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 12POS .100 30AU Headers & Wire Housings 2X12 RCPT SR PLAIN .100CL Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X12 MTE RCPT SR PLAIN .100CL
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	其他名称	A34966
产品类别	Headers & Wire Housings	标准包装数量	378
工厂包装数量	18

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

供电电压	267 V	输入电阻	5000
连接器阻抗	刺破式压接 (IDC), 压接	最大额定电流	3 A
保护额定电压（VPR）	600 VAC

机械参数

颜色	Black	间距	2.54 mm
高度	2.49 mm [ .098 in ]	长度	60.96 mm [ 2.4 in ]
包装方式	Tube	导线类型	Ribbon Cable
壳体颜色	黑色	导线线规	22-26 AWG
排间距	2.54 mm	端接方式	IDT
触头类型	Female Socket	第二连接器	Without
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Wire
排数	1	插入件材料	磷青铜
操作力	Standard	触头材料	Phosphor Bronze
壳体材料	Thermoplastic	包装数量	18
面板安装类型	不带	电缆端接方式	IDC
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	12	绝缘直径	1.37 mm [ .054 in ]
位数	12	兼容外壳尺寸（如TM-700等）	与接头配合
安装孔直径	不带	典型触点布局	同轴
接触镀层厚度	30µin (0.76µm)	静电放电屏蔽	带有

产品信息

备注	带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。	类型	IDC Connector
连接器性别	RCP	系列	AMPMODU MTE
产品特性	Closed End	产品子类型	Headers

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

6-103976-1?RQPN=6-103976-1

相关型号

5-102203-9

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER R/A .100 12POS 15AU Headers & Wire Housings HDR 1X12P R/A T/H Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Search Keywords:board to board, AMPMODU, pcb connectors, 12 MODII HDR SRRA SHRD LF

¥11.7640

详情

102202-9

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 15AU Headers & Wire Housings SHROUDED VER SNGL 12 with standoffs Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 12Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 12 MODII HDR SRST SHRD .100CL

¥8.2960

详情

暂无图片

1-104344-0

te connectivity / amp

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole CONN HDR BRKWAY 12POS VERT 30AU

详情

暂无图片

1-104345-0

te connectivity / amp

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole CONN HDR BRKWAY 12POS VERT 15AU

详情

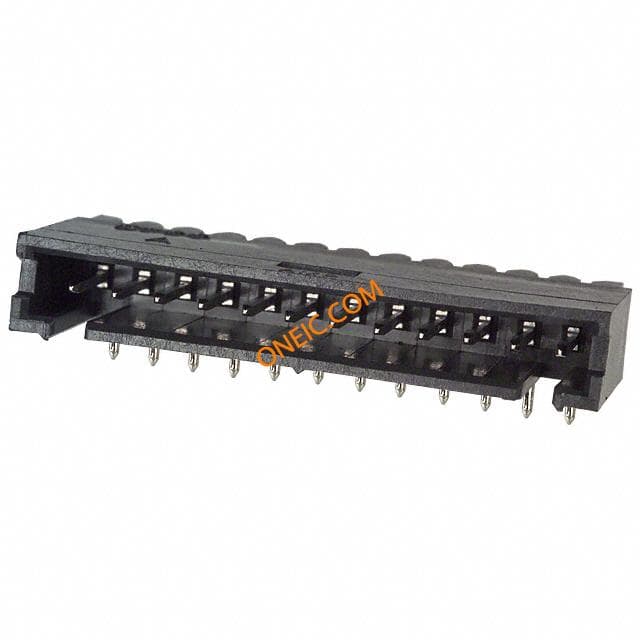

6-102523-0
