6-103640-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 15 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 15 MTE RCPT SR LATCH .100CL Headers & Wire Housings 15 MTE RCPT SR LATCH .100CL 15 MTE RCPT SR LATCH .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装规格 | 14 |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 14 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 250 VAC | 输入电阻 | 5000 |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 A |
| 保护额定电压（VPR） | 600 V | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 锁定类型 | Latch | 包装方式 | Tube |
| 导线类型 | Discrete or Ribbon Cable | 壳体颜色 | 黑色 |
| 导线线规 | 26-30 AWG | 排间距 | 2.54 mm |
| 端接方式 | 15 mΩ | 触头类型 | Female Socket |
| 第二连接器 | With | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 操作力 | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 包装数量 | 14 |
| 电缆端接方式 | IDC | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 15 |
| 绝缘直径 | .76 – 1.37 mm | 位数 | 15 |
| 安装孔直径 | 带有 | 典型触点布局 | 同轴 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 备注 | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | 系列 | AMPMODU MTE |
| 产品特性 | Closed End | 产品子类型 | Receptacles / Sockets - Housings |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | - 65 C to + 105 C |
文档与媒体
相关型号
6-103639-4
te connectivity / amp
Conn Shrouded Header HDR 15 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 15POS PCB TIN Headers & Wire Housings 15 MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 15 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 15Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR, HEADER, 2.54MM, 15WAY 15 MTE HDR SRST LATCH .100CL
6-104910-4
te connectivity / amp

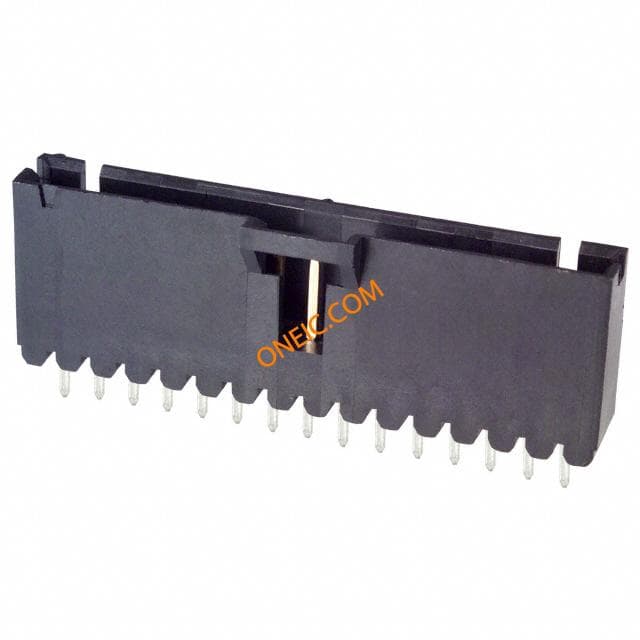

Conn Shrouded Header HDR 15 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 15POS 15AU Header 15 way pin 2.54mm IDC AmpModu Headers & Wire Housings 15MTE HDR SRST LATCH .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 15Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm节距 15路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 15 MTE HDR SRST LATCH .100CL
