6-102699-9

点击放大查看

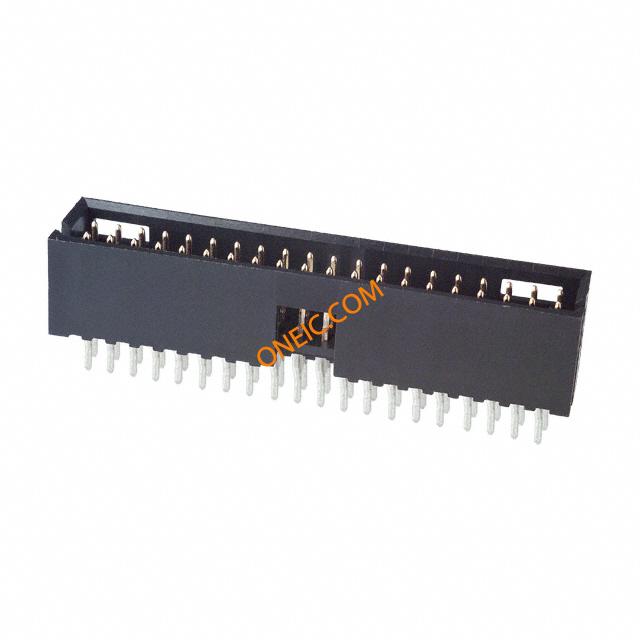

6-102699-9

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 40 POS 2.54mm Press Fit ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 40POS 30AU Headers & Wire Housings HDR VT .100 40P 30AU Conn Shrouded Header HDR 40 POS 2.54mm Press Fit ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST SHRD A/PIN
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU其他名称A33110
产品类别Headers & Wire Housings标准包装数量Trays
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant标准CSA LE7189, UL E28476
材料阻燃等级UL 94 V-0

电气参数

开关功能Detent Windows连接器阻抗制动器窗口
最大额定电流3 A绝缘电阻5000 MOhms
保护额定电压（VPR）750 Vrms

机械参数

颜色Black间距2.54 mm
底座类型不带包装方式Tray
壳体颜色黑色端部尺寸（如SMD/SMT、14mm等）1.68 mm [ .066 in ]
引脚样式直角排间距0.100" (2.54mm)
稳定剂Without端接方式Press Fit
触头类型Male Pin第一连接器否
第二连接器With安装类型Through Hole
连接器类型Header, Shrouded接触镀层Gold Over Nickel
紧固类型Detent Lock安装样式带有
排数2外壳材料（壳体）4- 面
插入件材料铜合金触头材料Copper, Nickel, Tin
壳体材料Thermoplastic安装特性作用/符合标准的尾
包装数量50面板安装类型通孔
端接样式Through Hole - Press Fit第一触头极性Pin (Male)
外径.64 mm [ .025 in ]触点数40
端接表面处理带罩位数40
柱体长度（配合）8.13 mm安装孔直径带有
接触长度 - 配合0.320" (8.13mm)端子柱长度6.35 mm
接触镀层厚度30µin (0.76µm)静电放电屏蔽不带
端接镀层厚度100 – 200

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU MOD II钥匙类型否
产品子类型Headers选择性装载No
加载位置数All

环境参数

密封等级不带温度Yes
工作温度- 55 C to + 105 C封装热阻2.36 – 3.18 mm [ .093 – .125 in ]
