6-102398-1

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 26 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 26POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 26P 26-22 Conn IDC Connector RCP 26 POS 2.54mm IDT ST Cable Mount Product Highlights:Receptacle AssemblyWire Termination Type = Insulation Displacement Crimp (IDC)Number of Positions = 26Number of Rows = DualTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM 26 AMPMODU MT ASSY DR .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	其他名称	A33397
产品类别	Headers & Wire Housings	标准包装数量	Trays
工厂包装数量	90

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

00000000

电气参数

量程（°/s）

:TE - AMPMODU MT Series

最大额定电流

3 A

机械参数

颜色	Black	间距	0.100" (2.54mm)
重量	0	包装方式	Tray
导线类型	Discrete or Ribbon Cable	导线线规	22-26 AWG
排间距	0.100" (2.54mm)	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold	安装样式	Wire
排数	2	触头材料	Copper Alloy
壳体材料	Thermoplastic	电缆端接方式	IDC
端接样式	IDC	第一触头极性	Socket (Female)
触点数	26	接触件端接	:IDC / IDT
位数	26	接触镀层厚度	30µin (0.76µm)

产品信息

连接器性别	:Receptacle	系列	AMPMODU MT
产品特性	Closed End	产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

- 65 C to + 105 C

相关型号

1-103168-1

te connectivity / amp

Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 26POS 30AU Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 26Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST SHRD .100CL

¥15.8440

详情

1-104351-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 26POS DUAL 15AU Headers & Wire Housings 26 MODII HDR DRST B/A W/HD .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 26Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST B/A W/HD

¥4.5560

详情

暂无图片

1-104350-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole CONN HDR BRKWAY 26POS DUAL 30AU

详情

1-104355-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings OBSOLETE CONN HDR BRKWAY 26POS R/A DUAL

详情

1-146130-2

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 26POS DUAL SMD Headers & Wire Housings 26 PIN SMD HEADER 720 Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST SMD Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 26Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST SFMNT B/A

¥11.6960

详情

1-87579-0

te connectivity / amp

Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 26POS PCB TIN Headers & Wire Housings SHROUDED RA DUAL 26 detent windows Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 26Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRRA SHRD .100CL

¥13.3960

详情

5-87589-9

te connectivity / amp

Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 26POS TIN Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 26Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST SHRD .100CL

¥17.2040

详情

1-104353-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 26POS R/A DUAL Headers & Wire Housings 26 MODII HDR DRRA B/A W/HLDWN Conn Unshrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRRA B/A W/HLDWN

¥20.1960

详情

1-104354-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 26POS R/A DUAL Headers & Wire Housings 26 MODII HDR DRRA B/A W/HLDWN .100 inch AMPMODU Headers Product Highlights:ConnectorHeader Type = Standard26 PositionsMating Post Length = 5.84 mm2.54 mm CenterlineSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRRA B/A W/HLDWN

¥9.0440

详情

87589-9

te connectivity / amp

Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 26POS TIN Headers & Wire Housings SHROUDED VER DUAL 26 detent windows Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = ShroudedSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST SHRD .100CL

¥13.8040

详情

1-103166-1

te connectivity / amp

Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 26POS 30AU Headers & Wire Housings SHROUDED RA DUAL 26 detent windows Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 26Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRRA SHRD .100CL

¥14.3480

详情

暂无图片

1-104352-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole CONN HDR BRKWAY 26POS DUAL TIN

详情

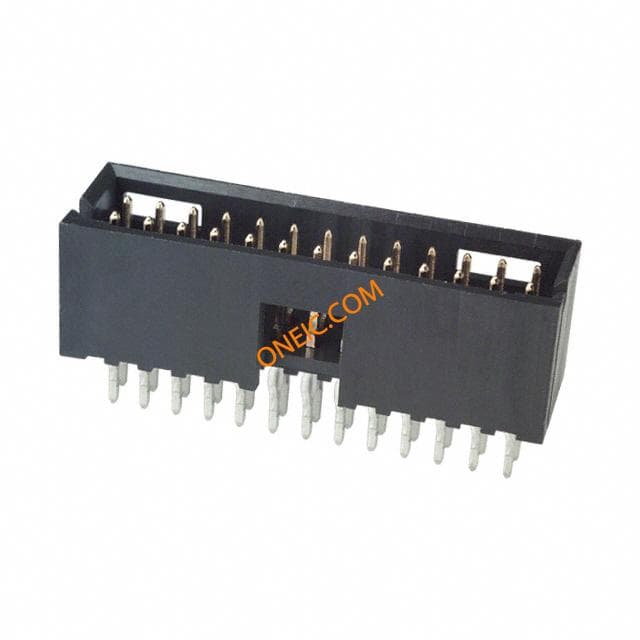

6-102699-2
