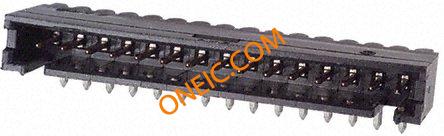

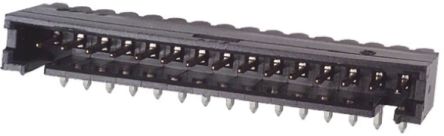

6-102203-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 15 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER R/A .100 15POS 15AU TE Connectivity AMPMODU Series 2.54mm Pitch 15 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Conn Shrouded Header HDR 15 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Search Keywords:board to board, AMPMODU, pcb connectors, AMPModuIIShroudedHeader,r/a,SR,15w TE Connectivity AMPMODU Mod II 系列 2.54mm节距 15路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 15 MODII HDR SRRA SHRD LF |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 连接器阻抗 | 带有 | 最大额定电流 | 3A |
| 保护额定电压（VPR） | 750 Vrms | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 底座类型 | 带有 | 包装方式 | Tube |
| 壳体颜色 | 黑色 | 端部尺寸（如SMD/SMT、14mm等） | 1.778 mm [ .07 in ] |
| 引脚样式 | 直角 | 方向 | 直角 |
| 稳定剂 | Without | 端接方式 | Solder |
| 触头类型 | Male Pin | 第一连接器 | 否 |
| 第二连接器 | Without | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | 标准 | 排数 | 1 |
| 外壳材料（壳体） | 4- 面 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | 热塑性 |
| 包装数量 | 13 | 面板安装类型 | 通孔 |
| 主要材料 | Connector | 端接排数 | 焊接 |
| 端接样式 | 插针 | 外径 | .64 mm [ .025 in ] |
| 触点数 | 15 | 端接表面处理 | 带罩 |
| 位数 | 15 | 安装孔直径 | 带有 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 2.79 mm [ .11 in ] |
| 接触镀层厚度 | 15µin (0.38µm) | 静电放电屏蔽 | 不带 |
| 端接镀层厚度 | 100 – 200 | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU | 覆盖范围 | 覆盖 |
| 钥匙类型 | 否 | 制造商全称 | AMPMODUModII |
| 产品子类型 | 连接器 | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 密封等级 | 不带 | 温度 | No |
| 工作温度 | -65 – 105 | 封装热阻 | 1.397 mm [ .055 in ] |
