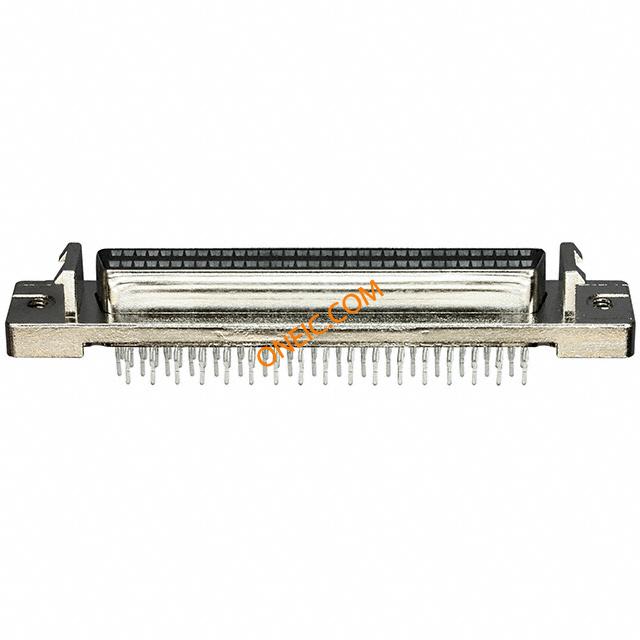

点击放大查看
5786155-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI RCP 68 POS 2.54mm Press Fit ST Thru-Hole 68 Terminal 1 Port D-Sub Standard Connectors 68 50SR VERT RCPT LTCH ACT PN .050 Series Board Mount Connectors 68 50SR VRT RCPT,LTCH,ACT PIN Conn SCSI RCP 68 POS 2.54mm Press Fit ST Thru-Hole 68 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 68ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 8 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | LR-86179-1, UL E28476 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 额定电压 | 30V |
| 开关功能 | Without | 最大额定电流 | 1A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tube | 屏蔽 | 是 |
| 壳体颜色 | 黑色 | 屏蔽类型 | Yes |
| 端接方式 | Press Fit | 触头类型 | Signal |
| 外壳表面处理 | 铜镀镍 | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 外壳镀层 | Nickel over Copper | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Tin over Nickel | 法兰特征 | Housing/Shell (2-56); Latchblocks |
| 接地类型 | 不带 | 安装导轨 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Carbon Steel | 电路板厚度 | 1.57 â 2.36 [0.062 â 0.093] |
| 连接器样式 | D-Type | 插入件材料 | 磷青铜 |
| 锁定特性 | Latch Blocks | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 框架材料 | 锌 |
| 安装特性 | 作用/符合标准的尾 | 包装数量 | 8 |
| 面板安装类型 | 通孔 - 焊接 | 接地凹痕 | Without |
| 端接样式 | Through Hole | 触点数 | 20 |
| 位数 | 68 | 外壳尺寸-插件 | Full Metal |
| 安装孔直径 | 2.77 mm [ .109 in ] | 外壳材料及表面处理 | Steel, Nickel Plated |
| 接触件表面处理 - 配合 | 铜镀镍 | 端子柱长度 | 4.39 [0.173] |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row |
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 系列 | Series III | 产品特性 | Shielded |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 其他规格 | 否 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 1.57 – 2.36 mm [ .062 – .093 in ] |
