点击放大查看

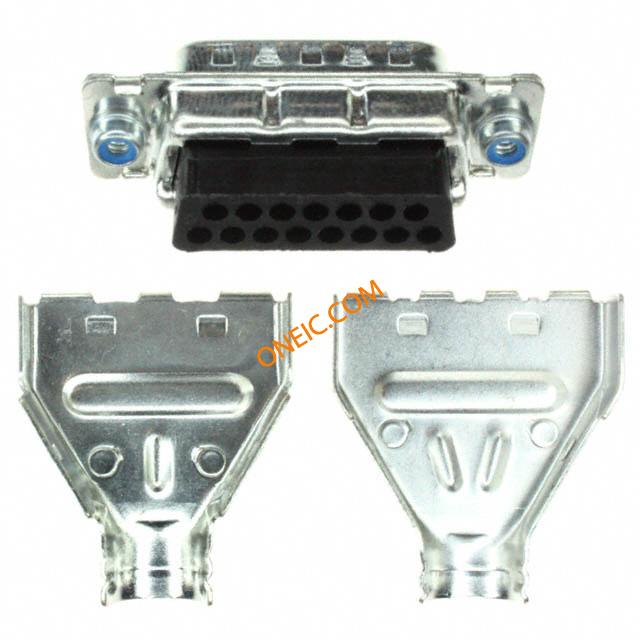

5750636-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PL 15 POS Crimp Bulk D-Sub Standard Connectors KIT PLUG 15P HDP-20 SHLD HDWRE Standard Cable Connectors CONN KIT PLUG SHIELDED 15POS Standard Cable Connectors Product Highlights:Cable Connector and ClampProduct Series = HDP-20 (Crimp Snap)Number of Positions = 15ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, HOUSING, D SUB, STANDARD, 15POS, PLUG KIT,PLUG,15P,HDP-20,SHLD HDWRE |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Black | 重量 | 0 |
| 包装方式 | Bulk | 出线方向 | Straight(180°)/120° |
| 绝缘类型 | Insulated | 外壳尺寸 | 2 |
| 屏蔽类型 | Yes | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 连接器类型 | Plug for Male Contacts | 法兰特征 | Board Side (4-40) |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Glass-Filled Nylon | 锁定特性 | Clinch Nut, 4-40 UNC |
| 屏蔽材料 | Steel | 壳体材料 | Nylon |
| 包装数量 | Bulk | 电缆端接方式 | Two-Piece RFI/EMI Shield |
| 接地凹痕 | With | 端接样式 | Crimp |
| 触点数 | 15 POS | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 绝缘直径 | 4.19 â 11.56 [0.165 â 0.455] | 绝缘材料 - 类型 | Nylon |
| 位数 | 15 | 外壳尺寸-插件 | Full Metal Shell |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 控制侧电缆固定器 | With | 外壳尺寸，连接器布局 | 2 (DA, A) |
产品信息
| 备注 | Contacts must be ordered separately. | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | PL |
| 系列 | HDP-20 | 产品特性 | Backshell, Grounding Indents, Shielded |
| 预装 | No | 产品子类型 | Cable Connector and Clamp |
| 适用产品/相关产品 | :HDP-20 Series Crimp Snap-In Contacts | ||
