5749892-1

点击放大查看

5749892-1

制造商
TE Connectivity Ltd.

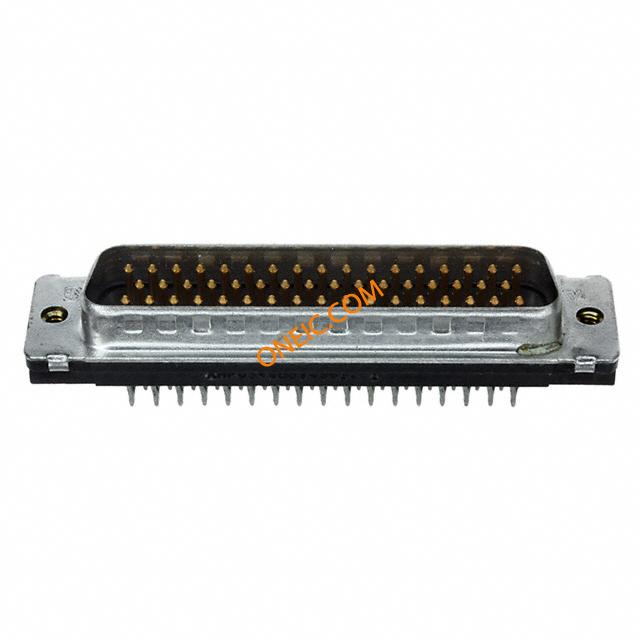

描述Conn D-Subminiature PIN 50 POS 2.77mm Press Fit ST Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50P PLUG ACT PIN/MS IN SPACER Standard Board Mount Connectors CONN D-SUB PLUG STR 50POS 30GOLD Standard Board Mount Connectors Product Highlights:50 PositionsHousing Gender = PlugPCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 50 PLUG ACT PIN/MS (IN,SPACER)
分类
对参数有疑问?问 AI 助手

商业参数

标准包装规格7产品类别D-Sub Standard Connectors
标准包装数量Tape & Reel工厂包装数量7

合规参数

RoHSRoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without连接器阻抗螺纹插针,4-40 UNC, 螺纹插针,4-40 UNC

机械参数

颜色Black间距2.77 mm
密封型No外形尺寸(长x宽)5
包装方式Tube壳体颜色黑色
外壳尺寸5端接方式Press Fit
触头类型Signal外壳表面处理
第二连接器With安装类型Through Hole
外壳镀层Tin连接器类型Plug, Male Pins
接触镀层Gold法兰特征Housing/Shell (4-40)
接地类型Without安装样式Through Hole
排数3外壳材料(壳体)Steel
电路板厚度0.093 [2.36]连接器样式D-Sub
插入件材料Brass锁定特性Threaded Insert, 4-40 UNC
外形(宽 x 高)Standard触头材料Brass
壳体材料Thermoplastic安装特性作用/符合标准的尾, 安装孔
包装数量7面板安装类型Without
接地凹痕With端接样式Through Hole
连接器颜色None触点数50
位数50外壳尺寸-插件Front Metal Shell
安装孔直径.12外壳材料及表面处理Steel, Tin Plated
端子柱长度5.80 [0.228]接触镀层厚度Flash
外壳与棱镜材料外壳尺寸,连接器布局5 (DD, D)

产品信息

类型D-Subminiature连接器性别PIN
系列HD-20产品特性Grounding Indents
可密封制造商全称AMP
预装产品子类型连接器

环境参数

工作温度-55°C ~ 105°C封装热阻2.36 mm [ .093 in ]
