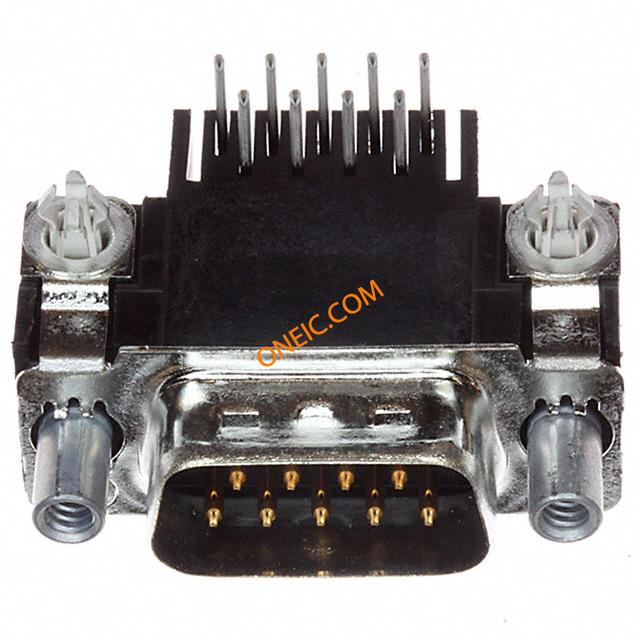

5747832-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09P RA590 CONN D-SUB PLUG R/A 9POS GOLD Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:9 PositionsPlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub C Conn;D-Sub;PCBPlug;9Pos;RTAng;HD-20Series;20AWG;FrontMetalShell 09 MSFL PLUG RA 590 (SL,FM,BL) |
| 分类 |
商业参数
| 其他名称 | A32135 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 17 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 额定电压 | 125V | 最大额定电流 | 6A |
| 最小供电电压 | 250VDC/250VAC | ||
机械参数
| 颜色 | Black | 深度 | 24.51 mm |
| 间距 | 2.74 mm | 高度 | 12.55 mm |
| 重量 | 0 | 包装方式 | Tube |
| 外壳尺寸 | 1 | 端接方式 | Solder |
| 触头类型 | Signal | 安装类型 | Through Hole |
| 外壳镀层 | Tin over Copper | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 安装样式 | SMD/SMT | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 触头材料 | Brass | 壳体材料 | Nylon/Polyester |
| 总长度 | 30.81 mm | 端接样式 | Solder |
| 触点数 | 9 | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | PIN |
| 系列 | HD-20 | 产品特性 | Board Lock, Ground Strap, Grounding Indents |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
