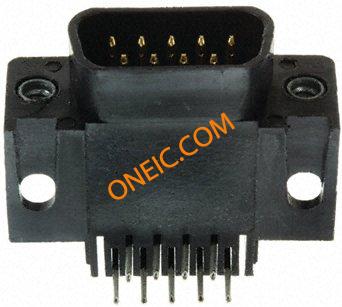

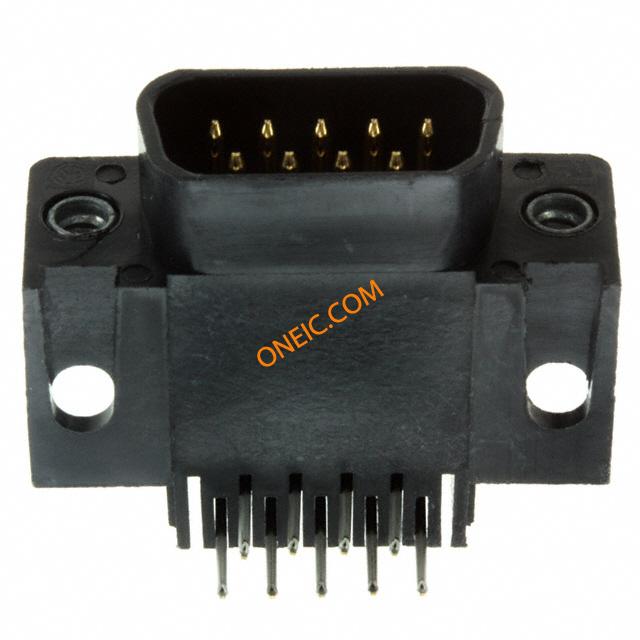

5747467-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09P RA590 Standard Board Mount Connectors CONN D-SUB PLUG R/A 9POS PCB AU AMPLIMITE HD-20 d-sub PCB plug, 9 pin Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;9Pos;RTAng;HD-20Series;20AWG;AllPlasticShell TE Connectivity Amplimite HD-20 系列 2.74mm 节距 9 路 直角 通孔安装 PCB D-sub 连接器 插头 HD-20 PLUG 9P RA 590 THD INS |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 140 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 连接器阻抗 | 螺纹插针 | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 深度 | 24.58mm |
| 间距 | 2.74 mm | 宽度 | 11.48mm |
| 高度 | 11.48 mm | 长度 | 30.81mm |
| 密封型 | No | 外形尺寸(长x宽) | 1 |
| 包装方式 | Tray | 壳体颜色 | 黑色 |
| 引脚样式 | Round | 外壳尺寸 | 1 |
| 方向 | 直角 | 端接方式 | Solder |
| 触头类型 | Signal | 柱间距 | .108 |
| 第二连接器 | With | 触点形状 | Round |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (4-40) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.093 [2.36] |
| 连接器样式 | D-Sub | 插入件材料 | Zinc |
| 锁定特性 | Threaded Inserts | 材料表面处理 | Clear Chromate |
| 外形（宽 x 高） | Standard | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 总长度 | 30.81 mm |
| 安装特性 | 安装孔 | 包装数量 | 140 |
| 面板安装类型 | Without | 尺寸/外形 | 0.66 [.026] |
| 接地凹痕 | Without | 外形尺寸 长x宽x高 | 14.99 [.590] |
| 端接样式 | Through Hole | 连接器颜色 | None |
| 外径 | .66 mm [ .026 in ] | 触点数 | 9 |
| 位数 | 9 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 3.18 [.125] | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | Flash | 触点材料 - 镀层 | 锌 |
| 外壳与棱镜材料 | 是 | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 可密封 | 否 | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 mm [ .093 in ] |
