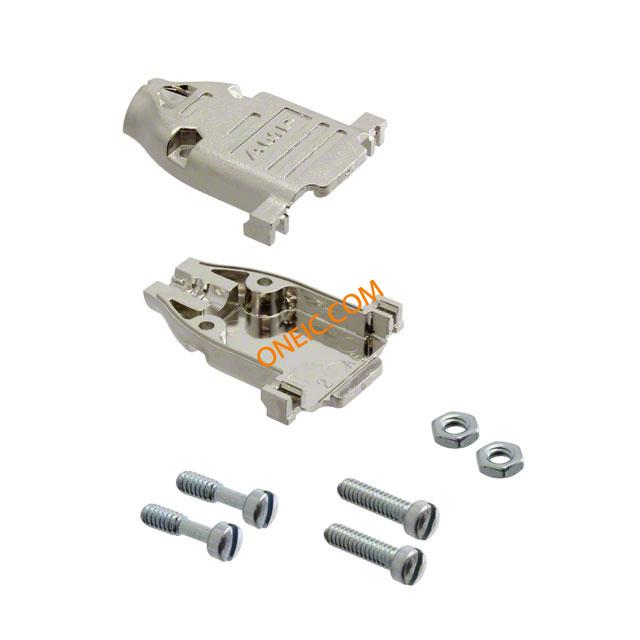

5747099-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 15 POS Backshell and Cable Clamp Thermoplastic Individual D-Sub Backshells DSUB ACC: A CABLE CLAMP SHLD Cable Clamps CONN BACKSHELL DB15 METAL PLATED Backshell/Cable Clamp 180� 2 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Backshell/Cable Clamp 180° 2 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Backshell/Cable Clamp 180° 2 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub CABLE CLAMP KIT,SZ 2 |
| 分类 |
商业参数
| 交货时间 | 98 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 零件状态 | 747784-3 |
电气参数
| 连接器阻抗 | 180 | ||
机械参数
| 颜色 | Silver | 外形尺寸(长x宽) | 2 |
| 镀层 | Nickel over Copper | 材料（通用） | Thermoplastic |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳尺寸 | 2 | 导线线规 | 金属电镀热塑性塑料 |
| 螺纹尺寸 | 4-40 | 外壳表面处理 | Bright |
| 外壳镀层 | Bright Nickel over Copper | 线径 | 5.715 mm [ .225 in ] |
| 电缆直径 | 5.72 mm | 电缆端类型 | Straight |
| 外壳材料（壳体） | Thermoplastic | 屏蔽材料 | 铜镀镍 |
| 包装数量 | 1 | 端接样式 | 两件式 RFI/EMI 屏蔽 |
| 位数 | 15 | 衬套/护套类型 | Without |
| 兼容外壳尺寸（如TM-700等） | 插头/母端 | 电缆对数 | 1 |
产品信息
| 备注 | 对于屏蔽电缆夹具，不能使用带有铆螺母的连接器壳体。, 所有部件都是包装好但未装配的状态。, 锁紧螺丝必须单独购买。 | 类型 | Backshell and Cable Clamp |
| 产品特性 | Mating Screws 4-40 | 硬件配件 | Assembly Hardware, Strain Relief |
| 产品子类型 | 附件 | 附件类型 | Two Piece Backshell |
| 射频系列/标准 | 747099 | 适用产品/相关产品 | 747099-7 |
