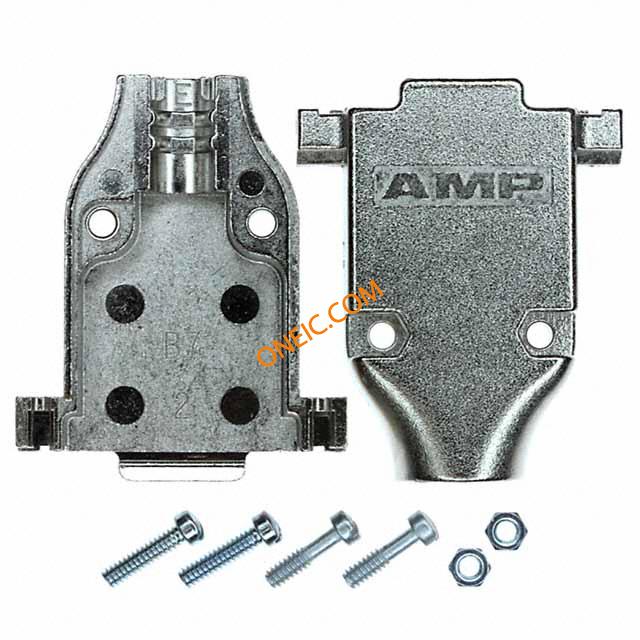

5745172-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 15 POS D-Sub Backshell/Cable Clamp Die Cast Bright Nickel Over Copper Finish Individual D-Sub Backshells DIE CAST SHLD 15 .30 Cable Clamps CONN BACKSHELL DB15 DIE CAST AMPLIMITE shielded backshell kit, size 2 Backshell/Cable Clamp 180� 2 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Backshell/Cable Clamp 180° 2 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Backshell/Cable Clamp 180° 2 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 7.62 mmNumber of Positions = 15Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub BACKSHELL, CABLE CLAMP, 15WAY Hood;D-Sub;15Pos;StraightExit;AMP;Die-CastMetal;0.300In.CblDia;EMI/RFIShield HD20 Series 15 Position Die Cast 180?Exit Angle Cable Clamp Kit TE Connectivity 15 路 直 锌合金 D-sub 连接器底壳 15 POS STRAIN RELIEF KIT |
| 分类 |
商业参数
| 交货时间 | 30 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | Silver | 深度 | 48.51 mm |
| 高度 | 15.74 mm | 重量 | 0.004 |
| 镀层 | Nickel over Copper | 材料（通用） | Metal, Zinc Alloy |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳尺寸 | 2 | 安装类型 | Straight |
| 外壳镀层 | Bright Nickel over Copper | 电缆直径 | 0.300In. |
| 电缆端类型 | Straight | 外壳材料（壳体） | Zinc Die Cast |
| 本体材料 | :Zinc Alloy | 壳体材料 | Die Cast Zinc Alloy |
| 总长度 | 39.24 mm | 位数 | 15 |
| 电缆对数 | 1 | 后壳材料及镀层 | Die-CastMetal |
产品信息
| 类型 | Backshell/Cable Clamp | 系列 | :AMPLIMITE |
| 产品特性 | Assembly Kit, Mating Screws 4-40 | 硬件配件 | Assembly Hardware, Strain Relief |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 附件类型 | Two Piece Backshell | 射频系列/标准 | 5745172 |
| 适用产品/相关产品 | 745172-2 | ||
环境参数
| 工作温度 | -55C to 105C | ||
