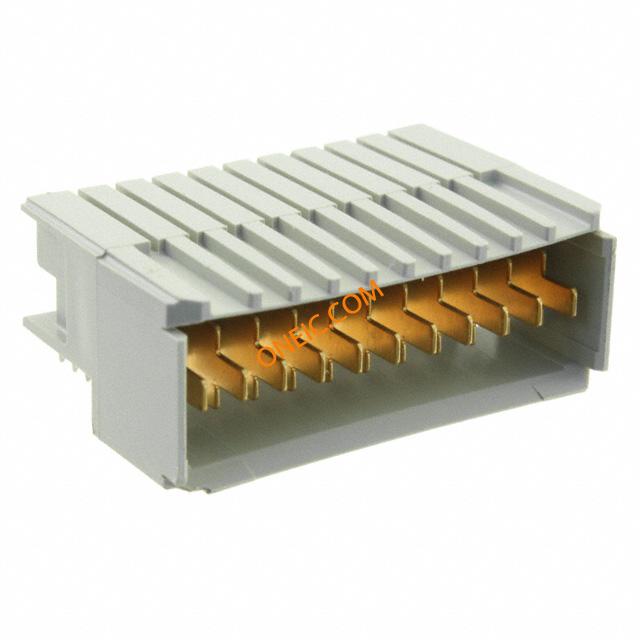

5646961-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn DIN 41612 PIN 11 POS Solder RA Press Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN PLUG 11POS UNIV PWR MODULE Hard Metric Connectors UPM EXPANDED PIN ASSEMBLY Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) Product Highlights:PlugNumber of Positions = 11PCB Mount Angle = Right AngleNot KeyedTin Solder Tail Contact PlatingSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, HEADER, UPM, R/A, 11WAY UPM EXPANDED PIN ASSEMBLY |
| 分类 |
商业参数
| 标准包装规格 | 15 | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | ||
机械参数
| 颜色 | Gray | 间距 | :2mm |
| 重量 | 0.05 | 包装方式 | Tube |
| 端接方式 | Press-Fit | 触头类型 | Compliant Post |
| 柱间距 | :2mm | 外壳颜色 | Gray |
| 安装类型 | Press Fit | 连接器类型 | Header, Male Blades |
| 接触镀层 | Gold Over Nickel | 安装样式 | PCB |
| 排数 | 1 | 连接器样式 | Blade Power |
| 连接器用途 | Backplane | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 触点数 | 11 POS |
| 接触件端接 | :Press Fit Right Angle | 位数 | 11 |
| 柱体长度（配合） | 10.90 [0.429] | 典型触点布局 | 11 Power |
| 接触镀层厚度 | 3µin (0.08µm) | ||
产品信息
| 备注 | Contact area lubricated with Bellcore approved lubricant. | 类型 | DIN 41612 |
| 连接器性别 | :Header | 系列 | :- |
| 产品特性 | Board Guide | 编码、键控 | No |
| 产品子类型 | Plug | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
